TraceTheChat - 8kSec
Description:
TraceTheChat is a seemingly innocent messaging app. Type a message, hit send, and it gets routed to a mysterious contact. But beneath the surface, the message travels through an obfuscated class that hides the details from plain sight.
Objective:
- Use Frida to dynamically trace and intercept the actual message being sent at runtime.
- Identify the class or method responsible for dispatching messages, hook into it with Frida, and extract the message contents and recipient live as they’re sent.
Restrictions:
You must extract the message only through instrumentation.
Explore the application

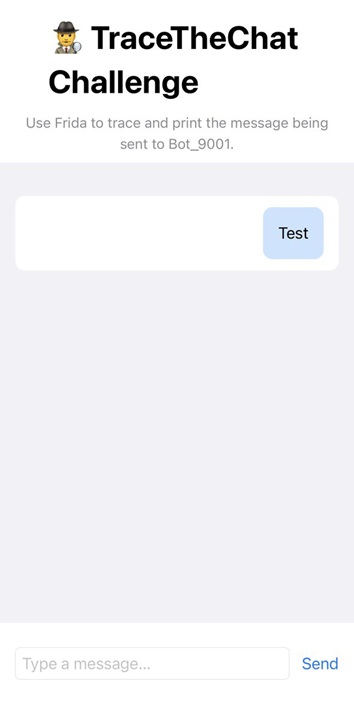

When you launch the app, it shows a screen where you can start chatting with Bot_9001 and send messages.
With Frida, we can enumerate the app’s classes.
1
2
3
4
5
6
7
for (var className in ObjC.classes) {
if (ObjC.classes.hasOwnProperty(className)) {
if (className.toLowerCase().indexOf("tracethechat") !== -1) {
console.log(className);
}
}
}
output
1
2
3
4
5
6
Spawned `com.8ksec.TraceTheChat.W46SY5ZJ6Z`. Resuming main thread!
[iOS Device::com.8ksec.TraceTheChat.W46SY5ZJ6Z ]-> _TtC12TraceTheChatP33_BF948D250337C3375DCE4307755C166C19ResourceBundleClass
_TtGC7SwiftUIP10$1a30af3d014AnyViewStorageV12TraceTheChat11ContentView_
TraceTheChat.ObfMessage
TraceTheChat.MessageRouter
TraceTheChat.InternalMsgHandler
Reverse Engineering With Ghidra

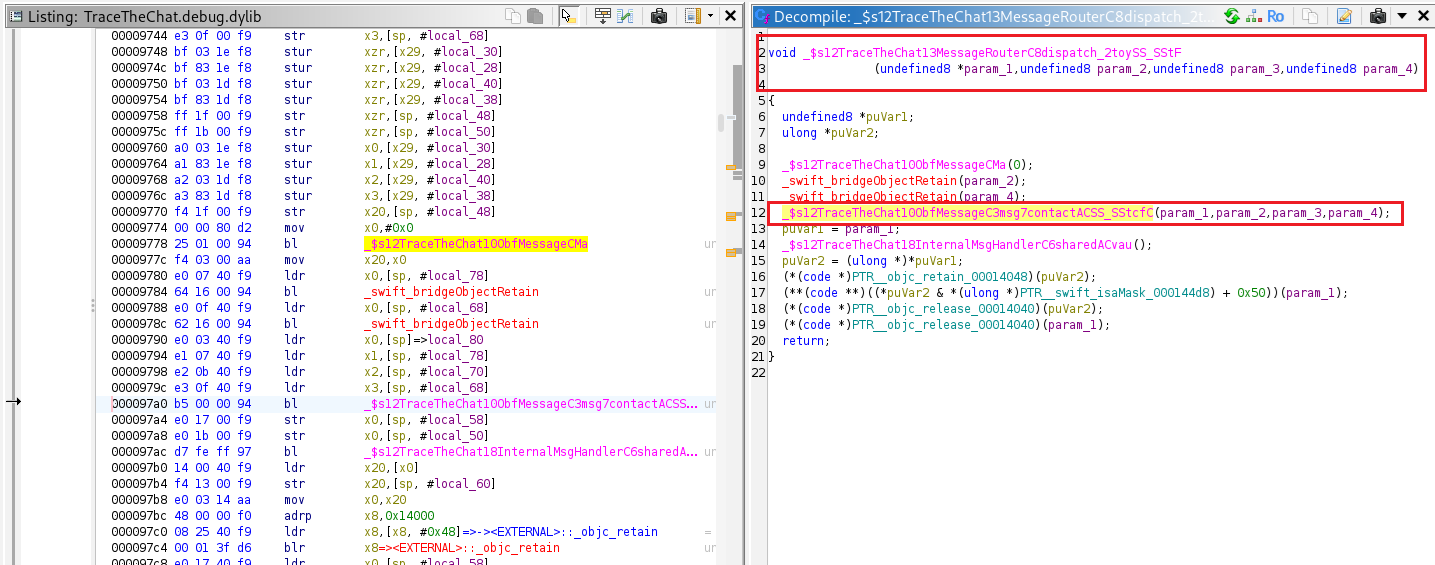

The MessageRouter.dispatch() function invokes the ObfMessage.contacts() function.

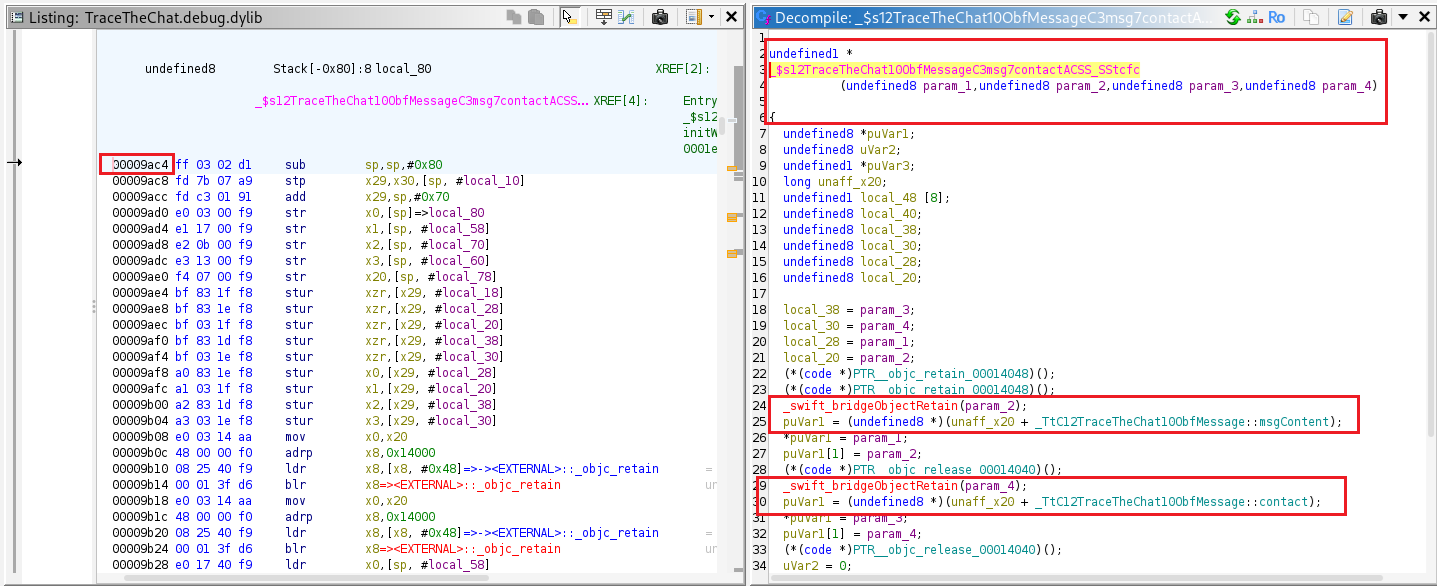

The ObfMessage.contacts() function, located at offset 0x9ac4, takes four parameters.
This Frida script attaches to the function at TraceTheChat.debug.dylib + 0x9ac4. When that function returns, the script reads the returned pointer (retval) and inspects two fields inside the returned structure at offsets 0x8 and 0x18. For each field it attempts a safe byte read and collects the consecutive printable ASCII characters starting at that address. If it finds text it logs the absolute address and the string; if the string contains "Bot" it tags the line as Bot, otherwise it tags it as Message. If no readable text is found at an offset it reports <no text>.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
var hookOffset = ptr('0x9ac4');
var t_module = 'TraceTheChat.debug.dylib';
var base = Module.getBaseAddress(t_module);
if (base === null) throw new Error('Module not found: ' + t_module);
var target = base.add(hookOffset);
console.log('[+] Module base: ' + base);
console.log('[+] Hooking target: ' + target);
// simple printable test
function isPrintable(b) { return b >= 0x20 && b <= 0x7e; }
// read a UTF-8 string at addr safely, fallback to inline printable bytes if not a C-string
function readTextAt(addr, maxCStrLen = 1024, maxScan = 256) {
try {
if (addr.isNull()) return null;
} catch (e) { return null; }
// try reading bytes and return consecutive printable chars starting at addr
try {
var ba = Memory.readByteArray(addr, maxScan);
if (!ba) return null;
var u8 = new Uint8Array(ba);
var out = '';
for (var i = 0; i < u8.length; i++) {
if (isPrintable(u8[i])) out += String.fromCharCode(u8[i]);
else break;
}
return out.length ? out : null;
} catch (e) {
return null;
}
}
Interceptor.attach(target, {
onEnter: function (args) {
},
onLeave: function (retval) {
try {
var basePtr = retval;
if (basePtr.isNull()) {
console.log('[!] retval is NULL');
return;
}
var offsets = [0x8, 0x18];
offsets.forEach(function(off) {
try {
var addr = basePtr.add(off);
var txt = readTextAt(addr, 4096, 1024);
if (txt) {
if(txt.indexOf("Bot") !== -1){
console.log('[+] offset=0x' + off.toString(16) + ' Bot -> "' + txt + '"');
}
else{
console.log('[+] offset=0x' + off.toString(16) + ' Message -> "' + txt + '"');
}
} else {
console.log('[+] offset=0x' + off.toString(16) + ' -> <no text>');
}
} catch (e) {
console.log('[!] offset=0x' + off.toString(16) + ' error:', e);
}
});
} catch (e) {
console.log('[!] onLeave exception:', e);
}
}
});
output
1
2
3
4
5
6
7
8
9
10
Spawning `com.8ksec.TraceTheChat.W46SY5ZJ6Z`...
[+] Module base: 0x102da4000
[+] Hooking target: 0x102dadac4
Spawned `com.8ksec.TraceTheChat.W46SY5ZJ6Z`. Resuming main thread!

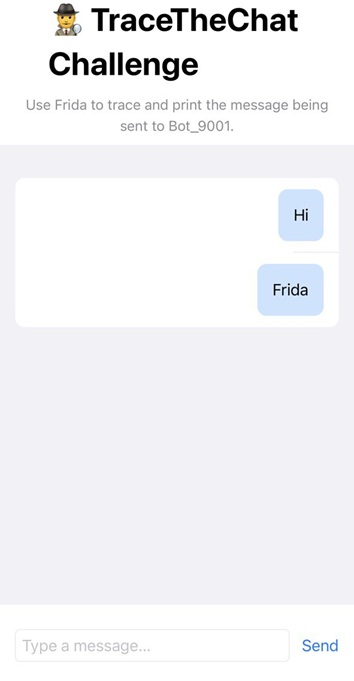

[iOS Device::com.8ksec.TraceTheChat.W46SY5ZJ6Z ]-> [+] offset=0x8 Message -> "Hi"
[+] offset=0x18 Bot -> "Bot_9001"
[iOS Device::com.8ksec.TraceTheChat.W46SY5ZJ6Z ]->
[iOS Device::com.8ksec.TraceTheChat.W46SY5ZJ6Z ]-> [+] offset=0x8 Message -> "Frida"
[+] offset=0x18 Bot -> "Bot_9001"
[iOS Device::com.8ksec.TraceTheChat.W46SY5ZJ6Z ]->
