SwizzleMeTimbers - 8kSec

Description:

SwizzleMeTimbers is a pirate-themed iOS app with a secret buried deep inside its view controller. A simple button reads “Unlock Treasure”, but it’s protected by a method that always returns false, unless you’re crafty enough to change its behavior at runtime.

Objective:

Bypass the app’s logic using dynamic instrumentation tools (e.g., Frida or Objective-C runtime) to change the behavior of a function at runtime and trigger the correct flag path.

Restrictions:

You must perform runtime manipulation to change how the app behaves.

Explore the application

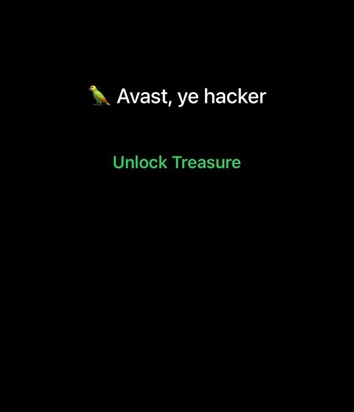

Launching the app displays the message “Avast, ye hacker” and an “Unlock Treasure” button.

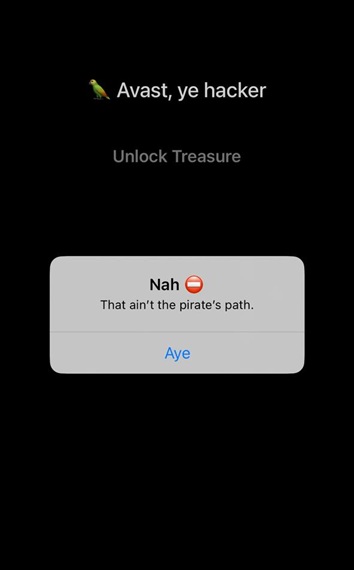

Pressing the button triggers a UIAlert with the message “That ain’t the pirate’s path.”

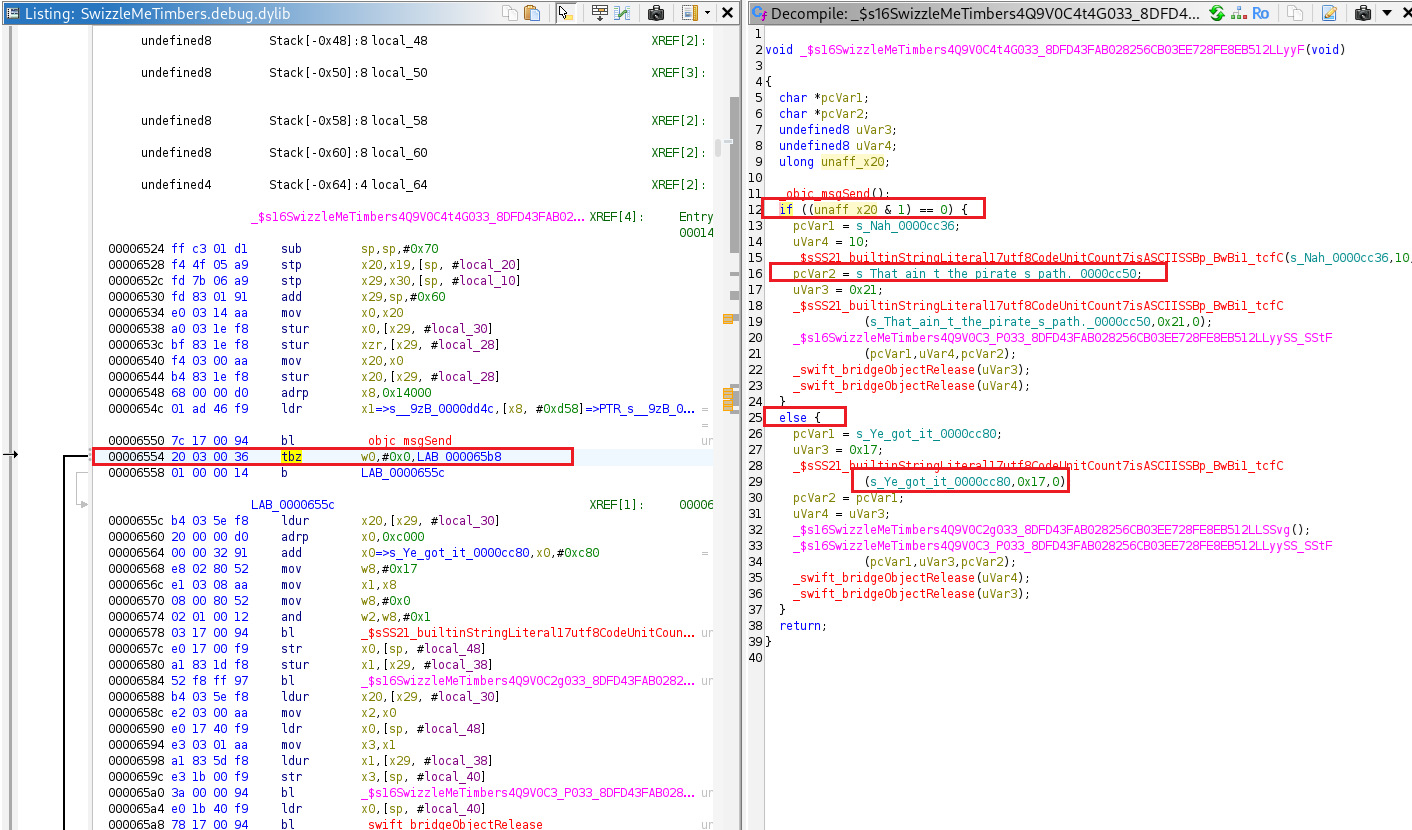

Reverse-engineering SwizzleMeTimbers.debug.dylib reveals an if check that tests a variable. if true it shows “That ain’t the pirate’s path,” otherwise it follows the else branch and reveals the flag.

tbz x0, #0, LAB_000065b8
b   LAB_0000655c

tbz x0, #0, LAB_000065b8 tests bit 0 (LSB) of x0.

• If LSB == 0 → branch to LAB_000065b8.
• If LSB == 1 → fall through to the next instruction.

The next instruction is b LAB_0000655c, an unconditional branch that always jumps to LAB_0000655c.

So the control flow is:

• x0 & 1 == 0 → go to LAB_000065b8 (likely the "That ain't the pirate's path" branch).
• x0 & 1 == 1 → fall through and then the b sends execution to LAB_0000655c (likely the flag branch).

To force the else path (the branch taken when LSB==1), set the LSB of x0 to 1 before the tbz executes.

This Frida script hooks the instruction at offset 0x6554 inside SwizzleMeTimbers.debug.dylib. to patch x0 register. if x0 == 0x0, change it to 0x1 to trigger the flag branch.

var offset = ptr('0x6554');
var t_module = 'SwizzleMeTimbers.debug.dylib';

var base = Module.getBaseAddress(t_module);
if (base === null) {
    throw new Error('Module not found: ' + t_module);
}

var target = base.add(offset);

Interceptor.attach(target, {
    onEnter: function (args) {
        // Read current x0
        var before = this.context.x0;
        console.log('[onEnter] x0 before: ' + before);

        // Check if x0 == 0x0 and set to 0x1 if so
        if (before.equals(ptr(0))) {
            this.context.x0 = ptr(1);
            console.log('[onEnter] x0 was 0x0 — changed to: ' + this.context.x0);
        } else {
            console.log('[onEnter] x0 unchanged');
        }
    }
});

Spawn the app with frida

└─# frida -U -f com.8ksec.SwizzleMeTimbers.W46SY5ZJ6Z -l 8ksec.js
     ____
    / _  |   Frida 16.1.4 - A world-class dynamic instrumentation toolkit
   | (_| |
    > _  |   Commands:
   /_/ |_|       help      -> Displays the help system
   . . . .       object?   -> Display information about 'object'
   . . . .       exit/quit -> Exit
   . . . .
   . . . .   More info at https://frida.re/docs/home/
   . . . .
   . . . .   Connected to iOS Device (id=4a6e3de083155aae4c1a3473ff2d8c76b254887b)
Spawning `com.8ksec.SwizzleMeTimbers.W46SY5ZJ6Z`...
Error hooking UIAlertController: TypeError: cannot read property 'returnType' of undefined
Spawned `com.8ksec.SwizzleMeTimbers.W46SY5ZJ6Z`. Resuming main thread!
[iOS Device::com.8ksec.SwizzleMeTimbers.W46SY5ZJ6Z ]-> [onEnter] x0 before: 0x0
[onEnter] x0 was 0x0 — changed to: 0x1

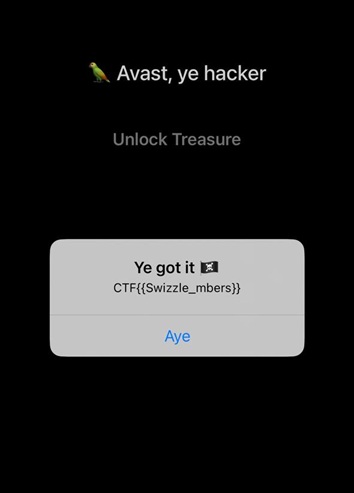

Flag: CTF
