Description:
Welcome to FridaInTheMiddle, a Swift-based iOS application that’s extremely sensitive to uninvited interference. It comes equipped with active runtime tamper detection that watches for signs of Frida, whether through suspicious ports, injected dylibs, or unauthorized hooks.
Objective:
Keep the app running while Frida is attached, and intercept the argument passed to dummyFunction(flag:) to extract the flag.
Restrictions:
Using Static reverse engineering is not allowed—you must rely on dynamic analysis to retrieve the flag during execution.

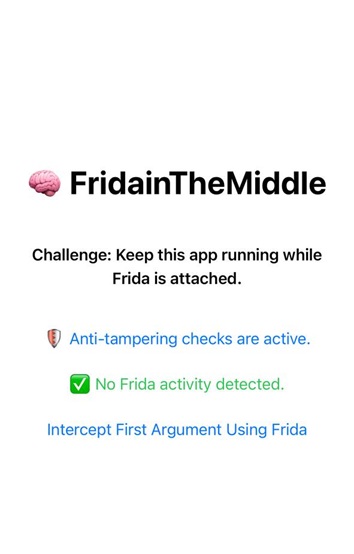

Explore the application

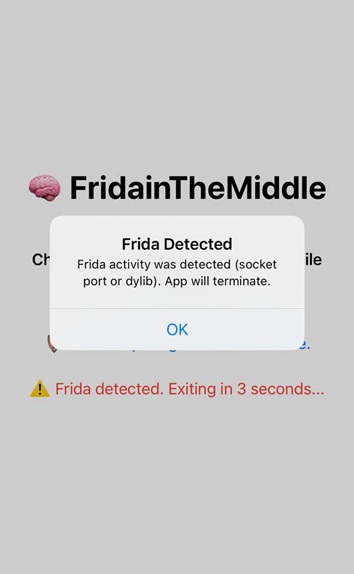

When you launch the app on a jailbroken device with the Frida server running, the app detects Frida, displays an alert, and then closes after 3 seconds.
Frida’s default server listens on TCP port 27042 (and its companion port 27043 for the device-to-host reverse connection in some setups). That default is a convention used by the official Frida server binary but can be changed by passing a different port when launching the server. Detecting a Frida server from an application typically amounts to probing for a TCP service bound to that port and checking whether it behaves like Frida.
A Frida script that hooks the connect() function and verifies whether it’s invoked with port 27042.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
function ntohs(n) {
return ((n & 0xff) << 8) | ((n >> 8) & 0xff);
}
// Hook connect(int sockfd, const struct sockaddr *addr, socklen_t addrlen)
var connectSym = Module.findExportByName(null, "connect");
if (connectSym) {
Interceptor.attach(connectSym, {
onEnter: function(args) {
try {
this.sockfd = args[0].toInt32();
this.addrPtr = args[1];
if (this.addrPtr.isNull()) {
console.log("[connect] fd=" + this.sockfd + " addr=NULL");
return;
}
var port_be = Memory.readU16(this.addrPtr.add(2));
var port = ntohs(port_be);
console.log("[connect] " + port);
} catch (e) {
console.log("[connect] onEnter error:", e);
}
}
});
} else {
console.log("[!] connect symbol not found");
}
A connect() call to port 27042 was found.
1
[iOS Device::com.8ksec.FridaInTheMiddle.W46SY5ZJ6Z ]-> [connect] 27042
To bypass this check, we can alter the return value of connect() so it is non-zero, or change the port argument from 27042 to a different port.
A Frida script that hooks connect() and forces its return value to -1 when the port argument is 27042.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
var frida_port_check = false;
function ntohs(n) {
return ((n & 0xff) << 8) | ((n >> 8) & 0xff);
}
// Hook connect(int sockfd, const struct sockaddr *addr, socklen_t addrlen)
var connectSym = Module.findExportByName(null, "connect");
if (connectSym) {
Interceptor.attach(connectSym, {
onEnter: function(args) {
try {
this.sockfd = args[0].toInt32();
this.addrPtr = args[1];
if (this.addrPtr.isNull()) {
console.log("[connect] fd=" + this.sockfd + " addr=NULL");
return;
}
var port_be = Memory.readU16(this.addrPtr.add(2));
var port = ntohs(port_be);
// Check for Frida default port
var isFridaPort = (port === 27042);
console.log("[connect] " + port);
if (isFridaPort) {
frida_port_check = true
console.log("Checking if frida-server port 27042 is open")
}
} catch (e) {
console.log("[connect] onEnter error:", e);
}
},
onLeave: function(retval) {
try {
if (frida_port_check) {
retval.replace(ptr(-1));
console.log("[connect] forced return = -1");
}
} catch (e) { console.log("[connect] force-return error:", e); }
}
});
} else {
console.log("[!] connect symbol not found");
}
output
1
2
3
4
Spawned `com.8ksec.FridaInTheMiddle.W46SY5ZJ6Z`. Resuming main thread!
[iOS Device::com.8ksec.FridaInTheMiddle.W46SY5ZJ6Z ]-> [connect] 27042
Checking if frida-server port 27042 is open
[connect] forced return = -1
Spawn the application with the provided Frida script. The app will open without detecting Frida.
An alternative Frida script that intercepts connect() and replaces the port argument 27042 with 5555.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
var frida_port_check = false;
function ntohs(n) {
return ((n & 0xff) << 8) | ((n >> 8) & 0xff);
}
function htons(n) {
return ((n & 0xff) << 8) | ((n >> 8) & 0xff);
}
// Hook connect(int sockfd, const struct sockaddr *addr, socklen_t addrlen)
var connectSym = Module.findExportByName(null, "connect");
if (connectSym) {
Interceptor.attach(connectSym, {
onEnter: function(args) {
try {
this.sockfd = args[0].toInt32();
this.addrPtr = args[1];
if (this.addrPtr.isNull()) {
console.log("[connect] fd=" + this.sockfd + " addr=NULL");
return;
}
// Read port (network byte order at offset 2)
var port_be = Memory.readU16(this.addrPtr.add(2));
var port = ntohs(port_be);
console.log("[connect] original port:", port);
// If Frida default port found, replace with 5555 (write in network byte order)
if (port === 27042) {
var newPort = 5555;
var newPort_be = htons(newPort);
try {
Memory.writeU16(this.addrPtr.add(2), newPort_be);
frida_port_check = true;
console.log("[connect] replaced port 27042 ->", newPort);
} catch (werr) {
console.log("[connect] failed to write new port:", werr);
}
}
} catch (e) {
console.log("[connect] onEnter error:", e);
}
}
});
} else {
console.log("[!] connect symbol not found");
}
output
1
2
3
Spawned `com.8ksec.FridaInTheMiddle.W46SY5ZJ6Z`. Resuming main thread!
[iOS Device::com.8ksec.FridaInTheMiddle.W46SY5ZJ6Z ]-> [connect] original port: 27042
[connect] replaced port 27042 -> 5555
After bypassing Frida detection, hook the function dummyFunction(flag) and read the value of its flag parameter.
This Frida script will search for a function named dummyFunction() and print its mangled name and address.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
var TOKEN = "FridaInTheMiddle";
console.log("[*] Searching symbols for token:", TOKEN);
var modules = Process.enumerateModulesSync();
for (var mi = 0; mi < modules.length; mi++) {
var mod = modules[mi];
try {
var syms = Module.enumerateSymbolsSync(mod.name);
for (var i = 0; i < syms.length; i++) {
var s = syms[i];
if ((s.name && s.name.indexOf(TOKEN) !== -1) && s.name.indexOf("dummyFunction") !== -1){
console.log("[match] module:", mod.name, " symbol:", s.name, " @", s.address);
}
}
} catch (e) {
console.log("[!] couldn't enumerate symbols for", mod.name, ":", e);
}
}
console.log("[*] done.");
module: FridaInTheMiddle.debug.dylib This is the dynamic library (dylib) that defines the symbol.
symbol: $s16FridaInTheMiddle11ContentViewV13dummyFunction4flagySS_tF This is a Swift-mangled symbol name. Swift uses a compact mangling scheme that encodes the module, type, function name, parameter labels and types, and the return type.
1
2
3
Spawning `com.8ksec.FridaInTheMiddle.W46SY5ZJ6Z`...
[*] Searching symbols for token: FridaInTheMiddle
[match] module: FridaInTheMiddle.debug.dylib symbol: $s16FridaInTheMiddle11ContentViewV13dummyFunction4flagySS_tF @ 0x104f55d24
The FridaInTheMiddle.debug.dylib library is included in the IPA and is opened via dlopen at application startup.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
└─# unzip FridaInTheMiddle.zip
Archive: FridaInTheMiddle.zip
creating: Payload/
creating: Payload/FridaInTheMiddle.app/
creating: Payload/FridaInTheMiddle.app/_CodeSignature/
inflating: Payload/FridaInTheMiddle.app/_CodeSignature/CodeResources
inflating: Payload/FridaInTheMiddle.app/AppIcon60x60@2x.png
creating: Payload/FridaInTheMiddle.app/META-INF/
inflating: Payload/FridaInTheMiddle.app/__preview.dylib
inflating: Payload/FridaInTheMiddle.app/Assets.car
inflating: Payload/FridaInTheMiddle.app/AppIcon76x76@2x~ipad.png
inflating: Payload/FridaInTheMiddle.app/FridaInTheMiddle
inflating: Payload/FridaInTheMiddle.app/embedded.mobileprovision
inflating: Payload/FridaInTheMiddle.app/FridaInTheMiddle.debug.dylib
inflating: Payload/FridaInTheMiddle.app/Info.plist
extracting: Payload/FridaInTheMiddle.app/PkgInfo
A Frida script that bypasses Frida detection, hooks dummyFunction(), and reads the flag parameter
Note: the Frida GitHub issue here includes code showing how to read a Swift String with Frida
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
var frida_port_check = false;
function ntohs(n) {
return ((n & 0xff) << 8) | ((n >> 8) & 0xff);
}
function htons(n) {
return ((n & 0xff) << 8) | ((n >> 8) & 0xff);
}
// Hook connect(int sockfd, const struct sockaddr *addr, socklen_t addrlen)
var connectSym = Module.findExportByName(null, "connect");
if (connectSym) {
Interceptor.attach(connectSym, {
onEnter: function(args) {
try {
this.sockfd = args[0].toInt32();
this.addrPtr = args[1];
if (this.addrPtr.isNull()) {
console.log("[connect] fd=" + this.sockfd + " addr=NULL");
return;
}
// Read port (network byte order at offset 2)
var port_be = Memory.readU16(this.addrPtr.add(2));
var port = ntohs(port_be);
console.log("[connect] original port:", port);
// If Frida default port found, replace with 5555 (write in network byte order)
if (port === 27042) {
var newPort = 5555;
var newPort_be = htons(newPort);
try {
Memory.writeU16(this.addrPtr.add(2), newPort_be);
frida_port_check = true;
console.log("[connect] replaced port 27042 ->", newPort);
} catch (werr) {
console.log("[connect] failed to write new port:", werr);
}
}
} catch (e) {
console.log("[connect] onEnter error:", e);
}
}
});
} else {
console.log("[!] connect symbol not found");
}
var myMethod = Module.findExportByName(null, "$s16FridaInTheMiddle11ContentViewV13dummyFunction4flagySS_tF");
if (myMethod) {
Interceptor.attach(myMethod, {
onEnter: function (args) {
var flag = print_swift_string(args[1]);
console.log('Flag: ', flag);
}
});
} else {
console.log("Hooking Swift method failed!");
}
function print_swift_string(x1){
// remove the hight bit of x1 to get the string pointer
var addr = BigInt(x1) ^ BigInt(0x8 * 16 ** 15);
// shift 32 bytes, then we can get the true string pointer
var offset = 32;
addr = addr + BigInt(offset);
// convert the addr to NativePointer, then read string value.
var ptrOfString = ptr(addr.toString())
return ptrOfString.readCString();
}
output
1
2
3
4
Spawned `com.8ksec.FridaInTheMiddle.W46SY5ZJ6Z`. Resuming main thread!
[iOS Device::com.8ksec.FridaInTheMiddle.W46SY5ZJ6Z ]-> [connect] original port: 27042
[connect] replaced port 27042 -> 5555
[iOS Device::com.8ksec.FridaInTheMiddle.W46SY5ZJ6Z ]-> Flag: CTF{you_evaded_frida_detection}
Flag: CTF{you_evaded_frida_detection}
Another Frida script to hook the function by its address.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
var frida_port_check = false;
function ntohs(n) {
return ((n & 0xff) << 8) | ((n >> 8) & 0xff);
}
function htons(n) {
return ((n & 0xff) << 8) | ((n >> 8) & 0xff);
}
// Hook connect(int sockfd, const struct sockaddr *addr, socklen_t addrlen)
var connectSym = Module.findExportByName(null, "connect");
if (connectSym) {
Interceptor.attach(connectSym, {
onEnter: function(args) {
try {
this.sockfd = args[0].toInt32();
this.addrPtr = args[1];
if (this.addrPtr.isNull()) {
console.log("[connect] fd=" + this.sockfd + " addr=NULL");
return;
}
// Read port (network byte order at offset 2)
var port_be = Memory.readU16(this.addrPtr.add(2));
var port = ntohs(port_be);
console.log("[connect] original port:", port);
// If Frida default port found, replace with 5555 (write in network byte order)
if (port === 27042) {
var newPort = 5555;
var newPort_be = htons(newPort);
try {
Memory.writeU16(this.addrPtr.add(2), newPort_be);
frida_port_check = true;
console.log("[connect] replaced port 27042 ->", newPort);
} catch (werr) {
console.log("[connect] failed to write new port:", werr);
}
}
} catch (e) {
console.log("[connect] onEnter error:", e);
}
}
});
} else {
console.log("[!] connect symbol not found");
}
var addr = ptr(0x5d24);
var t_module = 'FridaInTheMiddle.debug.dylib';
var nw = Module.getBaseAddress(t_module);
var toAtt = nw.add(addr);
Interceptor.attach(toAtt, {
onEnter: function (args) {
var flag = print_swift_string(args[1]);
console.log('Flag: ', flag);
}
});
function print_swift_string(x1){
// remove the hight bit of x1 to get the string pointer
var addr = BigInt(x1) ^ BigInt(0x8 * 16 ** 15);
// shift 32 bytes, then we can get the true string pointer
var offset = 32;
addr = addr + BigInt(offset);
// convert the addr to NativePointer, then read string value.
var ptrOfString = ptr(addr.toString())
return ptrOfString.readCString();
}
